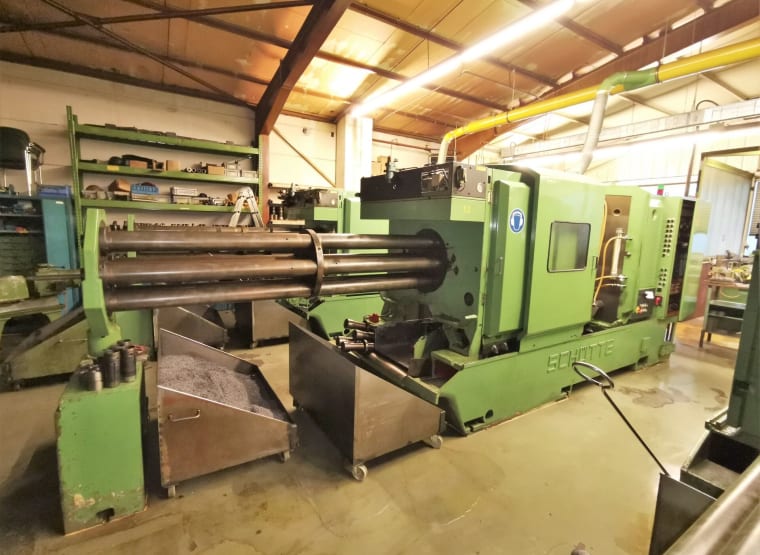

SCHÜTTE SF 63 Multi-Spindle Automatic Lathe
Tip
lot no. 107
1,500 €
26 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 11:46
Closing time
1,500 €
Starting bid
Item details
- Name
- SCHÜTTE SF 63 Multi-Spindle Automatic Lathe
- Item number
- 793579
- Manufacturer
- SCHÜTTE
- Model / Type
- SF 63
- Year of manufacture
- 1975
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 750.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 9,500 x 1,800 x 2,400 mm
- weight approx.
- 15,000 kg
Item description
Technical data (without guarantee): 6 spindles - largest bar diameter Normal, round: 63 mm - square: 47 mm - hexagon: 58 mm - octagon: 62 mm - spindle circle diameter: 420 mm - bar feed Normal: up to 160 mm - longitudinal slide travel Normal (total travel/working travel): up to 160/125 mm - cross slide travel (total travel/working travel): top slide: up to 80/50 mm - middle slide: up to 80/50 mm - bottom slide: up to 90/53 mm - number of spindle speeds: 49 - spindle speeds range 1: 200 - 1400 rpm - range 2: 90 - 630 rpm - rated power of drive motor: 30 kW - dimensions of automatic bar turning machine: approx. 7000 x 1800 x 2400 mm - with accessories, including collets and six-spindle automatic bar turning machine
Automatic translation
Auction details
- lot no.
- 107
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
