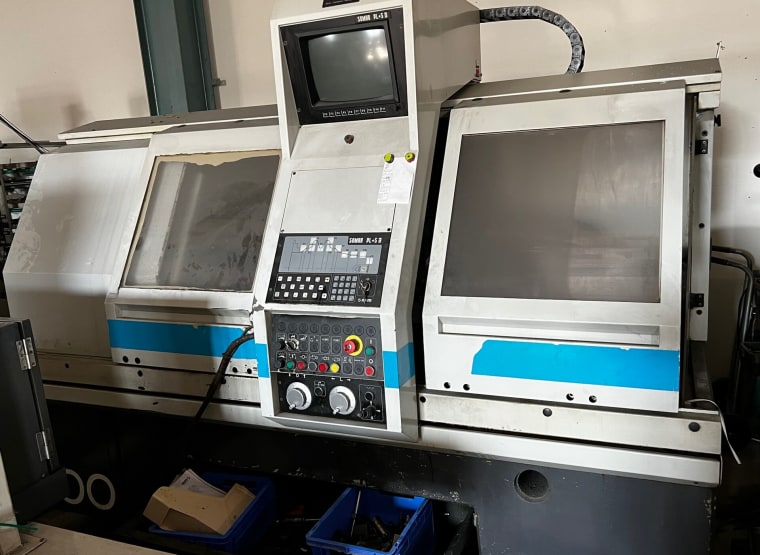

SOMAB UNIMAB 400 Cycle lathe

Turning diameter 400 mm Turning length 915 mm Center height approx. 200 mm max. swing diameter above bed 400 mm max. swing diameter over slide 220 mm Displacement path of the face slide / upper support 235 mm max. turning length with chuck 900 mm Longitudinal stroke d. Carriage 890/915 mm Spindle bore 52 mm Spindle speeds continuously variable 60 3,000 rpm. Longitudinal and planar feeds/rapid feeds, infinitely variable up to max. 15 m/min. Feed force max. flat/longitudinal 900 daN Workpiece weight max. flying/with tailstock 250 kg Thread pitches 0.1 400 mm/pitch Total power requirement 12.5 kW Machine weight approx. 5500 kg Accessories/special equipment NUM 2-axis cycle control SOMAB PL +S3 with direct input all turning parameters using interactive user interfaces and appropriate software, control and monitor installed in the sliding door, and with software for free contour input and tool change stop input. A MULTIFIX tool holder head type B is mounted on the cross slide with 4 different Multifix tool holders. Axis control possible manually via handwheels and joystick Manual 3 jaw chuck manual tailstock (MK 4) with quill, central lubrication, extendable Coolant system, 2 sliding doors, other, etc.
