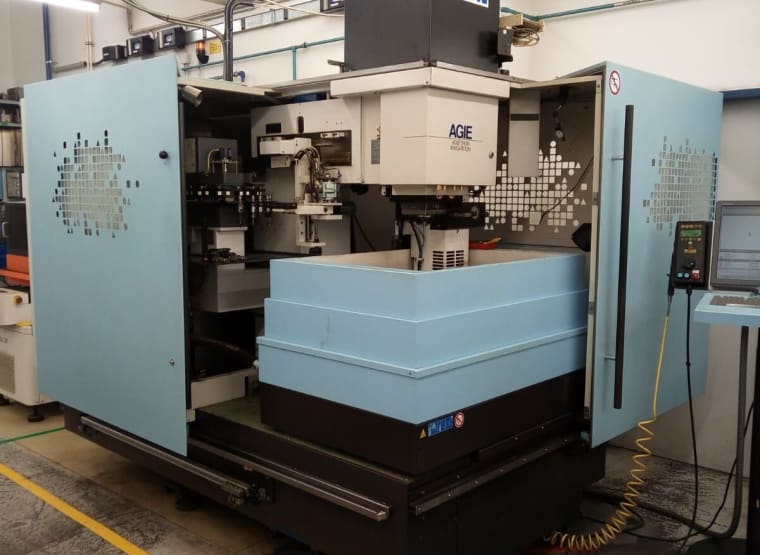

AGIE AGIETRON INNOVATION 2 Die Sinking Machine
Top lot
lot no. 58
1,900 €
10 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:57
Closing time
1,900 €
Starting bid
Item details
- Name
- AGIE AGIETRON INNOVATION 2 Die Sinking Machine
- Item number
- 883282
- Manufacturer
- AGIE
- Model / Type
- AGIETRON INNOVATION 2
- Year of manufacture
- 2000
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73235 Weilheim Teck
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Weilheim Teck, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 4,200 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,000 x 2,400 x 2,600 mm
Item description
"- Serial number: 177
- Operating voltage: 3 x 400 V
- Frequency: 50 Hz
- Power: 8.3 kVA
- Rated current: 12 A
- Distance from table to quill: 170 - 520 mm
- Max. workpiece dimensions: 650 x 580 x 250 mm
- Machine table:
- Clamping plate with grid: 50 mm
- Table dimensions: 600 x 450 mm
- Max. workpiece weight: 400 kg
- Max. electrode weight: 100 kg
- Travel paths:
X: 350mm
Y: 250mm
Z: 350 mm
- Rapid traverse X, Y and Z axes: 1500 mm/min
- C-axis integrated: 0 – 60 rpm
- C-axis max. electrode weight: 50 kg
"
- Operating voltage: 3 x 400 V
- Frequency: 50 Hz
- Power: 8.3 kVA
- Rated current: 12 A
- Distance from table to quill: 170 - 520 mm
- Max. workpiece dimensions: 650 x 580 x 250 mm
- Machine table:
- Clamping plate with grid: 50 mm
- Table dimensions: 600 x 450 mm
- Max. workpiece weight: 400 kg
- Max. electrode weight: 100 kg
- Travel paths:
X: 350mm
Y: 250mm
Z: 350 mm
- Rapid traverse X, Y and Z axes: 1500 mm/min
- C-axis integrated: 0 – 60 rpm
- C-axis max. electrode weight: 50 kg
"
Automatic translation
Auction details
- lot no.
- 58
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
