Panel Saws

10
Panel saws from top brands – for the perfect cut!
Categories
Reset filters Show items
Show on map view

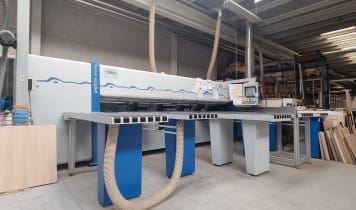

HOLZMA Profiline HPV 510 43/22/x Panel Saw
shape
Play
SCM Z45 D panel saw
shape
Play
Netherlands, 5121EG Rijen

SCM Z45 D panel saw

CASADEI KS/1600 Wood Sawyer
shape
Netherlands, 7547 TA Enschede

CASADEI KS/1600 Wood Sawyer

Slab saw
shape
Germany, 66953 Pirmasens

Slab saw

HOLZMA HPP81/42-CAD Optimat Panel Saw
shape
Netherlands, 7468 DC Enter

HOLZMA HPP81/42-CAD Optimat Panel Saw

HOMAG CV11/22 Vertical Panel Saw
shape
Play
Romania, 140022 Alexandria

HOMAG CV11/22 Vertical Panel Saw

HOLZMA HFV11/X/56/22 Panel Saw
shape
Poland, 64-308 Jabłonna k. Rakoniewice

HOLZMA HFV11/X/56/22 Panel Saw

Turntable for HOLZMA panel saw
shape
Poland, 64-308 Jabłonna k. Rakoniewice

Turntable for HOLZMA panel saw

HOLZMA Panel Saw
shape
Poland, 64-308 Jabłonna k. Rakoniewice

HOLZMA Panel Saw

SCM GROUP SIGMA IMPACT 105 C Panel Saw
shape

STRIEBIG Vorritz Aggregat Striebig Standard TRK III Accessories standing panel saws
shape
Austria, 4020 Linz

STRIEBIG Vorritz Aggregat Striebig Standard TRK III Accessories standing panel saws

HOLZ-HER 1211 Vertical Panel Sizing Saw
shape
Poland, 86-170 Nowe nad Wisłą

HOLZ-HER 1211 Vertical Panel Sizing Saw

HOLZ-HER PK Standing Panel Saw
shape
Germany, 75385 Bad Teinach - Sommenhardt

HOLZ-HER PK Standing Panel Saw

STRIEBIG Standard 5220 Standing panel saw
shape
Austria, 4020 Linz

STRIEBIG Standard 5220 Standing panel saw

STRIEBIG 6220.A _ 870 SSD2 Standing panel saw
shape
Austria, 4020 Linz

STRIEBIG 6220.A _ 870 SSD2 Standing panel saw

Panel saws are indispensable for cutting to size chipboard or plywood, and for that reason they are widely used in joineries as well as in the furniture industry. Panel saws can be requested with different technical features depending on the specific requirements (material, cutting length, throughput, etc.). Manufacturers like HOMAG, HOLZMA, HOLZHER, STRIEBIG or ELCON, among others, offer a wide range of woodworking machines: from manual saws to fully automated CNC machines. At Surplex, your expert in used machines, you will find high quality used panel saws, vertically or horizontally designed and at fair prices!

A panel saw (or panel-sizing saw) is a woodworking machine used to make dimensionally-accurate, linear and parallel cuts into boards and panels made from wood and non-ferrous metals. Composite materials, fibre boards or special materials can also be cut to size using a suitable saw blade. The saw unit in a panel saw is mounted to a slide, which is led crosswise across a panel using portal guidance.

  • Woodworking using linear, parallel cutting
  • Horizontal and vertical designs
  • Highly efficient especially for large-scale production
Quality Great offers Personalized

Parallel cuts of any desired size are made possible by a torsionally rigid frame and stable yet variable mechanical stops. Integrated dust extraction ensures a clean workspace.

Panel-cutting saws are available in a vertical or horizontal design. Horizontal panel saws are primarily used in the furniture-making industry. Lifting tables are the ideal way of feeding in materials when using a horizontal panel saw and allow large quantities of panels to be quickly processed in the desired method. A vertically-designed panel saw, on the other hand, is mostly of interest to joineries and DIY stores. The main advantage of a vertical panel saw is the greatly reduced need for installation space. The choice of whether to use a vertical or horizontal panel saw is thus mainly based on local circumstances in production. A horizontal panel saw is also termed ‘recumbent’ and a vertical version can also be referred to as an ‘upright’ panel saw. Depending on the type of machinery, saw unit controls and material feeding can be manual or automatic. To simplify certain work procedures, automatic trimming devices, cut-height settings, additional scoring units or label programs are also available.

SCHELLING Panel saw in operation

What is a panel saw used for? Vertical or horizontal panel saws are a wise choice if you frequently need to process and cut large quantities of material with a high level of accuracy. For smaller quantities, a movable or stationary table saw would be a better choice. Joineries and furniture manufacturers use panel saws in the first production steps to cut down large panels made from wood materials, such as plywood, chipboard, medium-density fibre board (MDF), oriented strand board (OSB), high density fibre board (HDF) into small, right-angled offcuts. The panel material is either manually inserted into the machine from the outside, or automatically via a lift table on the rear side of the machine. Depending on how the machine is configured, individual straight or mitred cuts are possible with a 3mm thick saw blade, or up to 8cm using a stack of saw blades.

Buying a used panel saw is not a critical decision. Panel saws feature a range of characteristics, which make them ideal as second-hand machinery: they are only produced by well-known manufacturers who have long been known for their high quality. The panel sawing process does not entail an excessive level of wear and tear, which means that even second-hand panel saws are generally easy to maintain and the parts which may require replacement are mostly in easy-to-reach areas. This primarily applies to small woodworking panel saws and panel saws with a small quantity of electronics. A CNC panel saw, on the other hand, is more prone to wear and tear due to increased technical complexity. However, even a used panel saw machine with modern equipment is generally easy to overhaul. The most important aspect is to focus on the manufacturer. The following come highly recommended: HOLZ-HER panel saws, HOMAG panel saws, GIBEN panel saws or panel saws made by STRIEBIG.

The main advantages of panelling saws can be seen when large quantities of wooden boards, wooden materials or composite materials need to be cut in parallel in the production process. The various woodworking panel saw manufacturers cover a wide range of applications with their machinery - from completely manual to fully automatic CNC operation, meaning that there is an ideal panel saw for sale for every specific production requirement. Well-known manufacturers and suppliers include: CASADEI, EMA, GABBIANI, GMC, GIBEN, HOLZ-HER, HOLZMA, HOMAG, SCHELLING, SCM, STRIEBIG, SELCO and PANHANS.
You can find a large number of used panel saws for sale at Surplex.com at reasonable prices. We offer a range of cheap panel cutters and other machinery to buy in our auctions to which we continually add new machines. This is why it is always worth paying frequent visits to Surplex.com.
