Wire EDM Machines

8
For industrial eroding with wires and electricity
Categories
Reset filters Show items
Show on map view

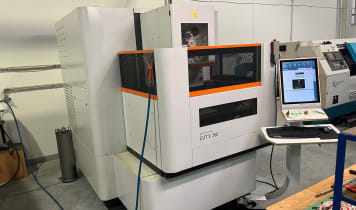

GF AGIECHARMILLES CUT E 350 CNC WIRE EDM Machine
shape
Play

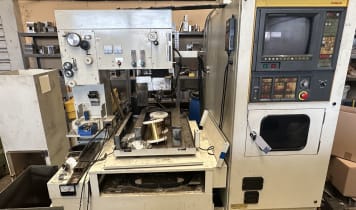

FANUC WO wire EDM machine
shape
Germany, 73235 Weilheim Teck

FANUC WO wire EDM machine

MITSUBISHI MV1200R Wire EDM Machine
shape
Play
Spain, 08295 Sant Vicenç de Castellet

MITSUBISHI MV1200R Wire EDM Machine

MITSUBISHI BA 24 Wire EDM Machine
shape
Germany, 53842 Troisdorf

MITSUBISHI BA 24 Wire EDM Machine

CHARMILLES ROBOFIL 440 CC Wire EDM Machine (defect)
shape
Play
MITSUBISHI RA9 Wire cutting machine
shape
Reserved
GF AGIE AGIECUT CLASSIC 2S Wire EDM Machine
shape
Reserved
AGIE CHARMILLES AGIECUT CLASSIC 2S wire-cutting machine
shape
Play

(4x) rolls of eroding wire - Ø0.20mm - 0.30mm
shape
Germany, 99625 Kölleda

(4x) rolls of eroding wire - Ø0.20mm - 0.30mm

SODICK EPOC - 600 Wire EDM Machine
shape
Germany, 42657 Solingen

SODICK EPOC - 600 Wire EDM Machine

BEDRA topas plus H (3x) rolls of EDM wire - Ø0.250mm
shape
Germany, 99625 Kölleda

BEDRA topas plus H (3x) rolls of EDM wire - Ø0.250mm

WELOT Zu 900 (2x) rolls of EDM wire - Ø0.250mm
shape
Germany, 99625 Kölleda

WELOT Zu 900 (2x) rolls of EDM wire - Ø0.250mm

(5x) rolls of EDM wire - Ø0.250mm
shape
Germany, 99625 Kölleda

(5x) rolls of EDM wire - Ø0.250mm

CNC wire EDM machines cut contours into a workpiece with a thin wire electrode based on spark erosion. The advantage of the wire EDM machine lies in the excellent cutting quality paired with high surface quality. Since each axis can be precisely controlled, complex shapes and smallest radii are possible. Wire EDM machines are of further help when cutting processes reach their limits, for example when dealing with carbide. Surplex offers used EDM (electrical discharge machining) equipment from leading manufacturers. These include first-class wire EDM machines from AGIE CHARMILLES (Agiecut, Robofil), SODICK, FANUC and MITSUBISHI - also with long travelling distances and high maximum workpiece weights.

A wire EDM machine is an industrial machine that is used to cut highly precise shapes and structures into metal plates. They are used to produce injection and press moulds, profiles and dies. Without wire EDM machines, mass production in the fields of metal reforming and plastic products would not be possible.
  • Used to cut highly precise shapes and structures
  • Material is taken out of a workpiece using the help of a wire and a strong current
  • Its operation of a wire EDM machine should only be conducted by experts.
 Quality   Great offers   Personalized

Since the invention of electricity, it is known that sparks can leave marks on metal surfaces. The cutting effect of electric arcs was only first researched in detail in 1770 by the British scientist, Joseph Priestley. The idea of finding a practical use for it arose over 170 years later. Two brothers from Russia, B.R. and N.I. Lazarenko, researched electric discharging as a new processing method for metal surfaces. They discovered the technological basis for further utilisation. In 1969 the first machine used for wire eroding was available on the market, and since then it is a standard piece of equipment for industrial parks and tool manufacturers

ONA Wire EDM machine in use

Erosion is practically the opposite of build-up welding. Instead of applying a piece of material on the present workpiece, material is taken out of a workpiece using the help of a wire and a strong current. The removal of the material occurs through electrical evaporation within a small space. Even though this causes a lot of visible sparks, these will have no damaging effect on the surface of the workpiece. The wire and workpiece are charged differently. The removal of material will always take place, where the smallest space between anode and cathode occurs. This is how highly precise contours are manufactured. In order to avoid burn damages to the wire and the workpiece, the erosion process takes place in a conductive liquid medium. The production of eroded workpieces can only be undertaken by workers with several years of training or extensive internal schooling or experience. The operation of a wire EDM machine should only be conducted by experts.

The endless wire can be fixed onto a 5-axis head, which is used to erode highly complex forms. Complex and technically challenging products can be produced during mass production using this process. Despite the high levels of complexity and the high training requirements, in regards to the manufacturing of tools, wire EDM machines are more efficient than CNC milling machines. This is particularly true as the erosion process is done contact-free. No wear and tear occurs on the processing tools, besides the cutting wire. Due to the contact-free process, the workability of the workpiece depends on its own material characteristics, particularly how hard it is.

The most well-known manufacturers are FANUC, CHARMILLES, MITSUBISHI or AGIE.
