Item details
- Name

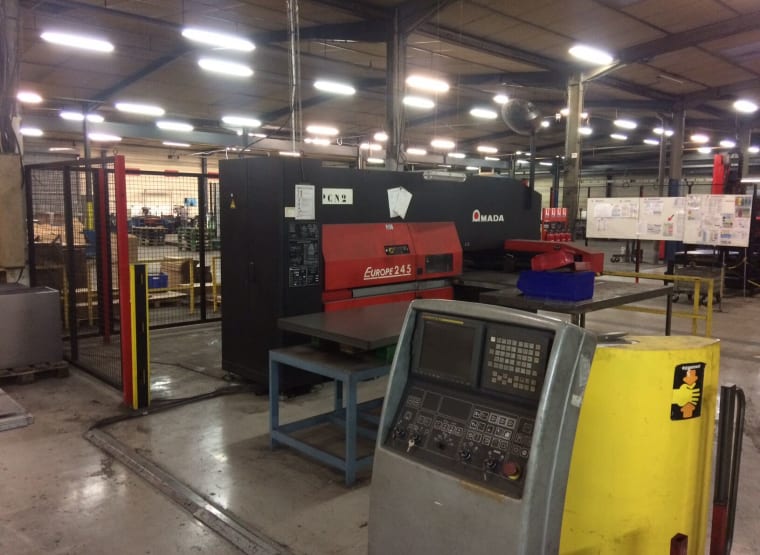

- AMADA Europe 245 Punching machine
- Item number
- 870180
- Manufacturer
- AMADA
- Model / Type
- Europe 245
- Year of manufacture
- unknown
- Item available from
- Immediately
- Item condition
- Location
-
France, 35490 Sens De Bretagne
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 2,950.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Sens De Bretagne, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 10,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 10,000 x 2,200 x 2,500 mm
Item description
Technical specifications
Punching force: 20 T
Format without repositioning: 1000 x 1270 mm
Format with repositioning: 1000 x 2540 mm
Format with repositioning and turning: 1500 x 3000 mm
Maximum ball table thickness: 6.4 mm
Maximum thickness of brush tables: 3.2 mm
Simultaneous X, Y travel speed X, Y, simultaneous: 70 m/mn
Average tool change time: 1.5s
Auto-index rotation speed: 60 rpm
Reference speed: 520 cps/mn
Accuracy between two holes: +/- 0.1 mm
- Fanuc 18 i-P CNC numerical control
Number of controlled axes: 4 (XYCT) + press
Minimum distance increment : 0.01mm
Minimum increment angle : 0.01°
Program memory capacity Workpieces: 64 kg
LCD colour screen
Communication: S-RAM and RS 232C
- Installation
Installed power: 25 KVA
Compressed air: 5 bars - 100 l/min
Punching force: 20 T
Format without repositioning: 1000 x 1270 mm
Format with repositioning: 1000 x 2540 mm
Format with repositioning and turning: 1500 x 3000 mm
Maximum ball table thickness: 6.4 mm
Maximum thickness of brush tables: 3.2 mm
Simultaneous X, Y travel speed X, Y, simultaneous: 70 m/mn
Average tool change time: 1.5s
Auto-index rotation speed: 60 rpm
Reference speed: 520 cps/mn
Accuracy between two holes: +/- 0.1 mm
- Fanuc 18 i-P CNC numerical control
Number of controlled axes: 4 (XYCT) + press
Minimum distance increment : 0.01mm
Minimum increment angle : 0.01°
Program memory capacity Workpieces: 64 kg
LCD colour screen
Communication: S-RAM and RS 232C
- Installation
Installed power: 25 KVA
Compressed air: 5 bars - 100 l/min
