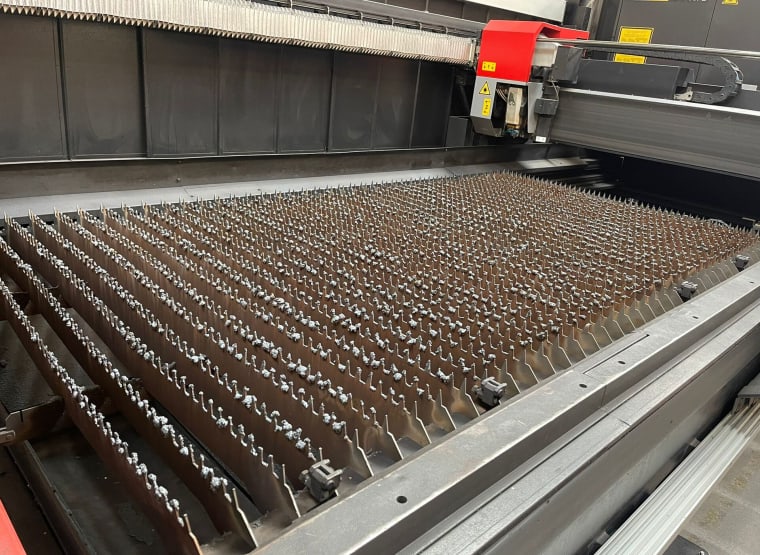

AMADA FO MII 3015 NT Laser Cutting Machine + MP Flexit 3015 Loading and Unloading Device

Serial Number: 097

Working details:

Working Area:

• X: 3070 mm
• Y: 1550 mm

• Cutting speed: X,Y: from 0 to 20 mt/min
• Max. weight on the table: 840 kg
• Assist gas control: Automatic
• Max. working height: 840 mm
• Weight of machine: Approx. 12.000 kg (excl. dust collector, cooler and changeoderver)
• Power requirement: AC 200/220V ±10% 50/60Hz 27 Kva (excl. dust collector, cooler and pallet changer)

Laser

• Model: AF 4000 i-B
• Maximum Power 4,000w
• Frequency: 5 to 2000hz
• Laser Type: Co2
• Circular Polarisation
• Laser gas consumption Approx. 10 lit./min.
• Cooling water flow 160 lit./min.
• Power requirement AC 200/220V ±10% 50/60Hz 55kVA
• Weight of unit Approx. 1,300kg

Cutting specifications:

• Iron: 22 mm approx
• Stainless: 12 mm approx
• Aluminium: 10 mm approx

MP FLEXIT AUTOMATION  Model MP Flexit 3015

Serial Number: 2413
Year of Manufacture 2012

Functions:

• Loading of sheet metal blanks.
• Unloading of sheets with micro-joints.
• Cutting pallet changer.
• Min. Laser Cutting Time 69s.
• Pallet changeover time (as preparation of the next sheet) 30s

Unit Load:

• Pallets of Raw Material: 1
• Max. Plate Load (kg) 3000
• Max. Stacking Height (mm) 400
• Max. Plate Size (mm) 3070 x 1550
• Min. Plate Size (mm) 2000 x 1000
• Max. Plate Weight (kg) 930
• Separating Magnets 3
• Number of suction cups 55

Unloading Unit:

• Unloading Pallets: 1
• Max. Plate Load (kg) 3000
• Max. Stacking Height (mm) 300
• Number of Forks 41
