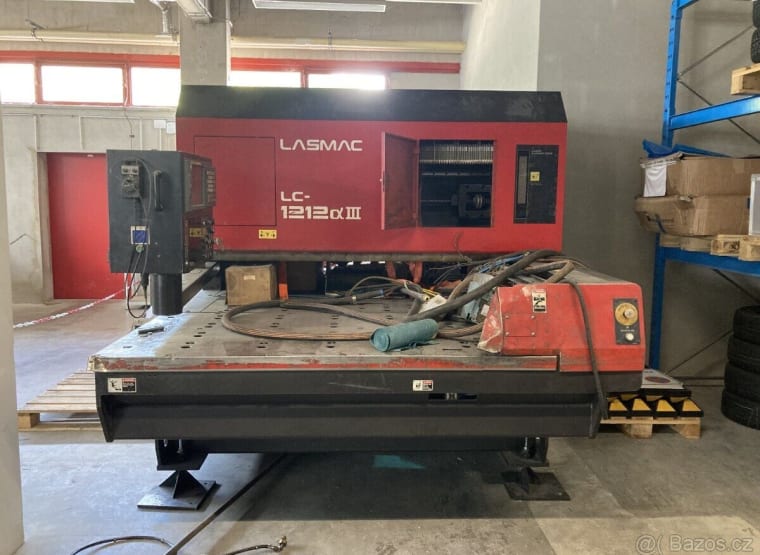

AMADA LC 1212 A3 Laser Cutting Machine
lot no. 92
7,500 €
15 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
28/02/24 14:03
Closing time
7,500 €
Starting bid
Item details
- Name
- AMADA LC 1212 A3 Laser Cutting Machine
- Item number
- 880792
- Manufacturer
- AMADA
- Model / Type
- LC 1212 A3
- Documents
- BED_LC_1212-2415_Alpha_III_08-2004.pdf
- Year of manufacture
- 2005
- Item available from
- immediately
- Item condition
- Location
-
Germany, 77815 Bühl
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 250.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Bühl, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- table length
- 2,540 mm
- table width
- 1,270 mm
- laser capacity
- 2 kW
- control
- FANUC FS-160iLA
- weight approx.
- 11,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 8,000 x 2,400 x 2,400 mm
Item description
.Maximum sheet dimensions 2540 x 1270 mm
Maximum sheet weight 220 kg
Travel of the carriage (X) 1270 mm
Travel of the laser head (Y-axis) 1270 mm
Travel of the laser head (Z-axis) 300 mm
Max. Cutting speed X- and Y-axis 20 m/min.
Fast feed speed X: 80 m/min.
Fast feed speed Y: 80 m/min.
Fast feed speed Z: 60 m/min.
Positioning accuracy ± 0.01/500 mm
Repeatability ± 0.005 mm
Height of the table 820 mm
Size of the parts flap 550 x 1270 mm
Strahlungsquelle C2000C
Maximum sheet weight 220 kg
Travel of the carriage (X) 1270 mm
Travel of the laser head (Y-axis) 1270 mm
Travel of the laser head (Z-axis) 300 mm
Max. Cutting speed X- and Y-axis 20 m/min.
Fast feed speed X: 80 m/min.
Fast feed speed Y: 80 m/min.
Fast feed speed Z: 60 m/min.
Positioning accuracy ± 0.01/500 mm
Repeatability ± 0.005 mm
Height of the table 820 mm
Size of the parts flap 550 x 1270 mm
Strahlungsquelle C2000C
