Item details
- Name

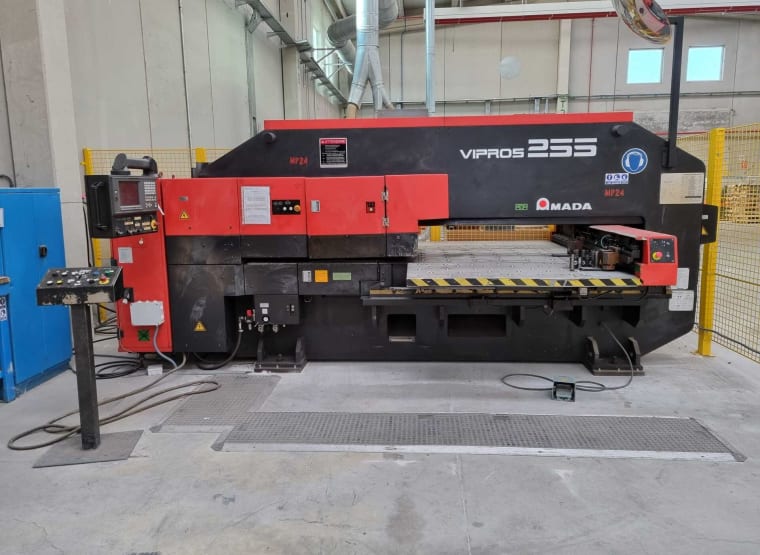

- AMADA VIPROS 255 Punching Machine
- Item number
- 844693
- Manufacturer
- AMADA
- Model / Type
- VIPROS 255
- Videos
-
Video 1 - Year of manufacture
- 2001
- Item available from
- Immediately
- Item condition
- Location
-
Spain, 26323 Hormilla (La Rioja)
- Show on map
- All items at this location
Costs and benefits
- 2,800.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Hormilla (La Rioja), loaded on truck
- Payment terms
- 100% payment prior to collection
- Security deposit
Technical details
- weight approx.
- 9,500 kg
- Approx. Onsite Dimension. (l x w x h)
- 6,500 x 6,000 x 3,140 mm
Item description
• Punching machine
• Serial number 255/263
• Total installed power 20 KW
• Punching force 200 kN (20.39 T)
• Number of turret stations: 31
• Turret speed 35 rpm
• Maximum sheet size: 1270 x 2540 mm
• Maximum sheet thickness: 6.40 mm
• X-axis stroke: 1270 mm
• Y-axis stroke: 1270 mm
• X-axis maximum feed speed: 89 m/min
• Y-axis maximum feed speed: 89 m/min
• Maximum weight on the table 100 kg
• Control FANUC SERIES 18-P
• Includes MTA TAEevo TECH 051 cooler (year 2016)
• Serial number 255/263
• Total installed power 20 KW
• Punching force 200 kN (20.39 T)
• Number of turret stations: 31
• Turret speed 35 rpm
• Maximum sheet size: 1270 x 2540 mm
• Maximum sheet thickness: 6.40 mm
• X-axis stroke: 1270 mm
• Y-axis stroke: 1270 mm
• X-axis maximum feed speed: 89 m/min
• Y-axis maximum feed speed: 89 m/min
• Maximum weight on the table 100 kg
• Control FANUC SERIES 18-P
• Includes MTA TAEevo TECH 051 cooler (year 2016)
