Top lot
lot no. 14
4,000 €
8 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
25/01/24 14:09
Closing time
4,000 €
Starting bid
Item details
- Name

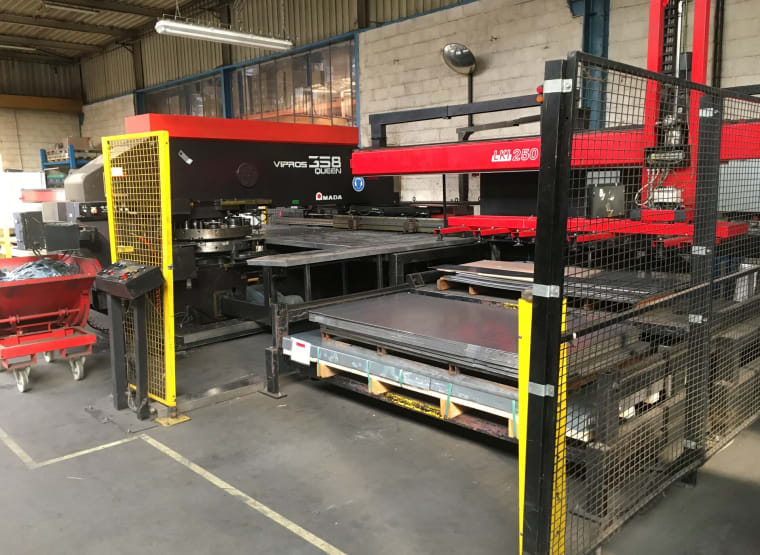

- AMADA VIPROS 358 QUEEN Punching Machine
- Item number
- 870185
- Manufacturer
- AMADA
- Model / Type
- VIPROS 358 QUEEN
- Year of manufacture
- 1998
- Item available from
- Immediately
- Item condition
- Location
-
France, 35490 Sens De Bretagne
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 2,950.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Sens De Bretagne, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 13,500 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,680 x 4,060 x 2,800 mm
Item description
Punching force: 30 tonnes
Press type Servo-valve-controlled hydraulic cylinder
40 mm variable hammer stroke controlled by CNC
Sheet size: 1270 x 2000 mm
Sheet size with repositioning: 1270 x 4000 mm
Max. material thickness Mild steel 6.35 mm
Max. hole diameter Material diameter 41 mm
Max. material weight 100Kg
Max. hole diameter 114.3 mm
Auto-Index: 2 B stations (max. diameter 31.7 mm)
Auto-Index: 2 C stations (max. diameter 50.8 mm)
Axis positioning speed (X, Y) 82 m / min
Turret rotation speed 30 rpm
Punching accuracy + / - 0.1 mm
Air blower/tool lubrication system
Servomotor
Electrical power required 30Kva 400V +/- 10% 50Hz
Required air pressure 5.0 Kgf / cm² Air flow rate
Air flow 250 L / min
Press type Servo-valve-controlled hydraulic cylinder
40 mm variable hammer stroke controlled by CNC
Sheet size: 1270 x 2000 mm
Sheet size with repositioning: 1270 x 4000 mm
Max. material thickness Mild steel 6.35 mm
Max. hole diameter Material diameter 41 mm
Max. material weight 100Kg
Max. hole diameter 114.3 mm
Auto-Index: 2 B stations (max. diameter 31.7 mm)
Auto-Index: 2 C stations (max. diameter 50.8 mm)
Axis positioning speed (X, Y) 82 m / min
Turret rotation speed 30 rpm
Punching accuracy + / - 0.1 mm
Air blower/tool lubrication system
Servomotor
Electrical power required 30Kva 400V +/- 10% 50Hz
Required air pressure 5.0 Kgf / cm² Air flow rate
Air flow 250 L / min
Automatic translation
Auction details
- Auction name
- Metalworking Machinery - France
- lot no.
- 14
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Viewing by appointment only!
- Pick up
-
Monday, 05/02/2024 to
Friday, 09/02/2024, from 08:00 to 16:00
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
