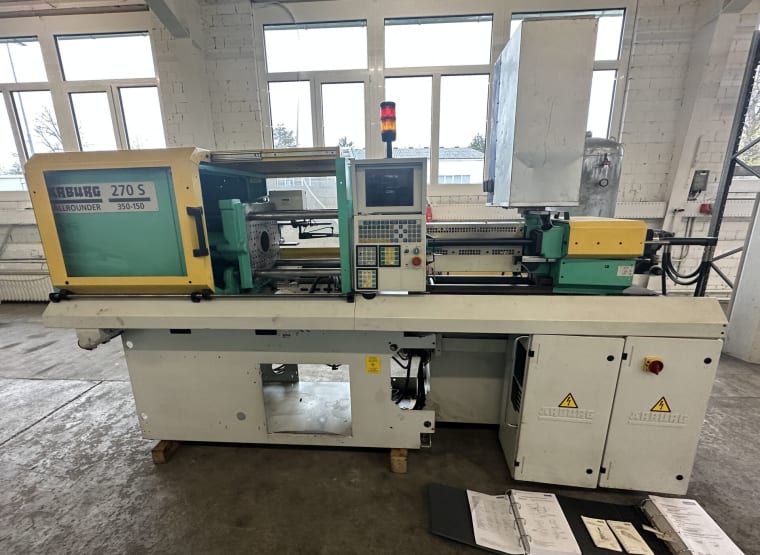

ARBURG ALLROUNDER 270 S 350-150 Injection Moulding Machine

ARBURG ALLROUNDER 270 S 350-150 Injection Moulding Machine
Top lot
lot no. 15
Closing time: 25/01/24 10:14
1,600 € Current highest bid
2 Bids 20 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
ARBURG ALLROUNDER 270 S 350-150 Injection Moulding Machine
25/01/24 10:14
Closing time
1,600 €
Current highest bid
Name
ARBURG ALLROUNDER 270 S 350-150 Injection Moulding Machine
Item number
882386
Manufacturer
ARBURG
Model / Type
ALLROUNDER 270 S 350-150
Year of manufacture
2000
Item available from
immediately
Item condition
Location
Germany, 73529 Schwäbisch Gmünd
Buyer’s premium
18 %
Dismantling & loading costs (binding)
150.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Schwäbisch Gmünd, loaded on truck
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
3,200 x 1,000 x 2,300 mm
weight approx.
2,000 kg
  • Machine number: 180692
  • Operating voltage: 400 V
  • Control voltage: 230 V
  • Rated current: 59 A
  • Total rated current: 71 A
  • Total connection: 42 kW
  • Closing force: 350 kN
  • Closing force: max. 35 kN
  • Opening force: max. 25 kN
  • Opening distance: max. 350 mm
  • Tool installation height: at least 175 mm
  • Distance between the clamping plates: max. 525 mm
  • Light column spacing: 270 x 270 mm
  • Tool platens: 446 x 446 mm
  • Weight of movable tool halves: max. 300 kg
  • Ejector force: max. 30 kN
  • Ejector path: max. 125 mm
  • Screw diameter: 25 mm
  • Effective auger length: 24
  • Snail travel: max. 110 mm
  • Calculated displacement volume: max. 54 cm³
  • Molded part weight: max. 49 g/PS
  • Spray pressure: max. 2500 bar
  • Positive dynamic pressure: max. 350 bar
  • Screw peripheral speed: max. 37 m/min
  • Screw torque: max. 300 Nm
  • Nozzle contact force: max. 50 kN
  • Nozzle lifting path: max. 300 mm
Automatic translation
Auction name
Machines and Inventory of an Injection Moulding Company
lot no.
15
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
79331 Teningen, Germany

- address on request -
Viewing by prior appointment only!
Pick up
Tuesday, 06/02/2024 to
Thursday, 08/02/2024, from 08:00 to 16:00
