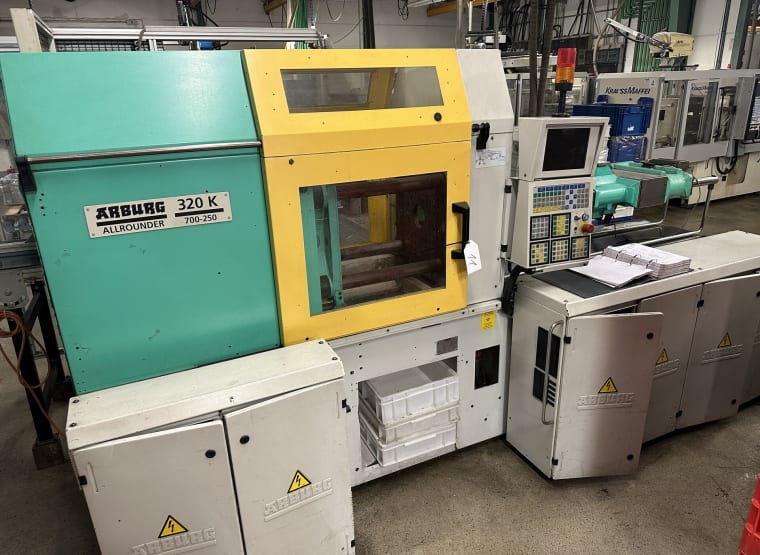

ARBURG ALLROUNDER 320 KS 700-250 Injection Molding Machine
Top lot
lot no. 11
1,600 €
14 Bids 18 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:10
Closing time
1,600 €
Current highest bid
Item details
- Name
- ARBURG ALLROUNDER 320 KS 700-250 Injection Molding Machine
- Item number
- 883479
- Manufacturer
- ARBURG
- Model / Type
- ALLROUNDER 320 KS 700-250
- Year of manufacture
- 2001
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 200.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 5,000 x 2,500 x 2,000 mm
- weight approx.
- 3,000 kg
Item description
"- Machine number: 184177
- Operating voltage: 400 V
- Heating: 6.1 kW
- Pump motor: 15 kW
- Total connection: 21.1 kW
- Closing force: 700 kN
- Screw diameter: 30 mm
- Tool locking force: max. 5 kN
- Opening distance: max. 250 mm
- Tool installation height: 200 – 400 mm
- Distance between the clamping plates: 650 mm max.
- Light column spacing: 320 x 320 mm
- Tool clamping plates: 476 x 476 mm
- Weight of movable tool half: max. 250 kg
- Ejector force: max. 30 kN
- Ejector path: max. 70 mm
- Injection unit: 250
- Effective auger length: 23.3
- Screw travel: max. 100 mm
- Molded part weight: max. 89
- Spray pressure: max. 2470 bar
- Injection flow: max. 112 cm³/s
- Screw peripheral speed: max. 49 m/min
- Screw torque: max. 420 Nm
- Incl. conveyor belt from the manufacturer SCHUMA
- Bandwidth: approx. 600 mm
The machine can be transported on a normal standard truck."
- Operating voltage: 400 V
- Heating: 6.1 kW
- Pump motor: 15 kW
- Total connection: 21.1 kW
- Closing force: 700 kN
- Screw diameter: 30 mm
- Tool locking force: max. 5 kN
- Opening distance: max. 250 mm
- Tool installation height: 200 – 400 mm
- Distance between the clamping plates: 650 mm max.
- Light column spacing: 320 x 320 mm
- Tool clamping plates: 476 x 476 mm
- Weight of movable tool half: max. 250 kg
- Ejector force: max. 30 kN
- Ejector path: max. 70 mm
- Injection unit: 250
- Effective auger length: 23.3
- Screw travel: max. 100 mm
- Molded part weight: max. 89
- Spray pressure: max. 2470 bar
- Injection flow: max. 112 cm³/s
- Screw peripheral speed: max. 49 m/min
- Screw torque: max. 420 Nm
- Incl. conveyor belt from the manufacturer SCHUMA
- Bandwidth: approx. 600 mm
The machine can be transported on a normal standard truck."
Automatic translation
Auction details
- lot no.
- 11
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
