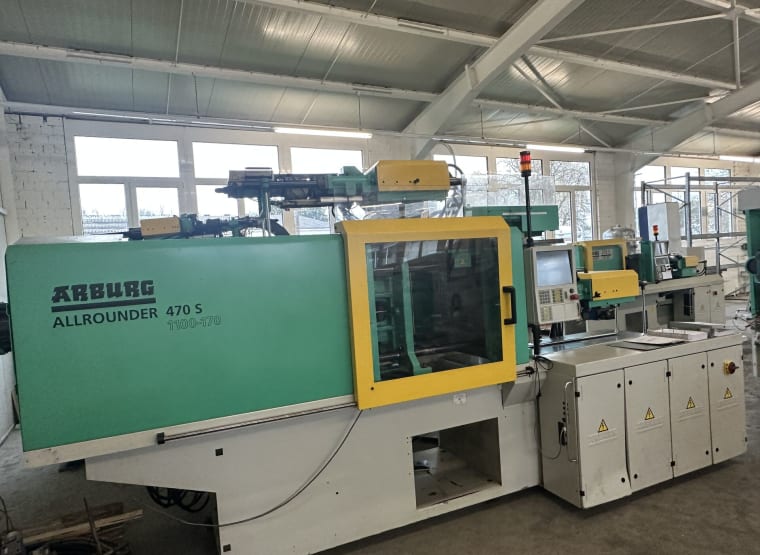

ARBURG ALLROUNDER 470 S 1100-170/170 Injection Moulding Machine

ARBURG ALLROUNDER 470 S 1100-170/170 Injection Moulding Machine
Top lot
lot no. 10
Closing time: 25/01/24 10:09
5,850 € Current highest bid
5 Bids 18 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
ARBURG ALLROUNDER 470 S 1100-170/170 Injection Moulding Machine
25/01/24 10:09
Closing time
5,850 €
Current highest bid
Name
ARBURG ALLROUNDER 470 S 1100-170/170 Injection Moulding Machine
Item number
882381
Manufacturer
ARBURG
Model / Type
ALLROUNDER 470 S 1100-170/170
Year of manufacture
2009
Item available from
immediately
Item condition
Location
Germany, 73529 Schwäbisch Gmünd
Buyer’s premium
18 %
Dismantling & loading costs (binding)
250.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Schwäbisch Gmünd, loaded on truck
Payment terms
100% payment prior to collection
Approx. Onsite Dimension. (l x w x h)
5,000 x 1,700 x 2,300 mm
weight approx.
4,500 kg
  • Machine number: 211355
  • Operating voltage: 400V
  • Frequency: 50Hz
  • Control voltage: 230 V
  • Rated current: 80 A
  • Total rated current: 118 A
  • Total connection: 62 kW
  • Closing force: max. 1100 kN
  • Closing force: max. 50 kN
  • Opening force: max. 34/255 kN
  • Opening distance: max. 500 mm
  • Tool installation height: at least 250 mm
  • Distance between the clamping plates: max. 750 mm
  • Light column spacing: 470 x 470 mm
  • Tool platens: 637 x 637 mm
  • Weight of movable tool halves: max. 760 kg
  • Ejector force: max. 40 kN
  • Ejector path: max. 175 mm
  • Screw diameter: 30 mm
  • Effective auger length: 20
  • Snail travel: max. 120 mm
  • Calculated displacement volume: max. 85 cm³
  • Shot weight: max. 77 g PS
  • Material throughput: max. 13.5 kg/h PS
  • Spray pressure: max. 2000 bar
  • Injection flow: max. 236 cm³/s
  • Screw torque: max. 250 Nm
  • Nozzle contact force: max. 50 kN
  • Nozzle lifting path: max. 210 mm
Automatic translation
Auction name
Machines and Inventory of an Injection Moulding Company
lot no.
10
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
79331 Teningen, Germany

- address on request -
Viewing by prior appointment only!
Pick up
Tuesday, 06/02/2024 to
Thursday, 08/02/2024, from 08:00 to 16:00
