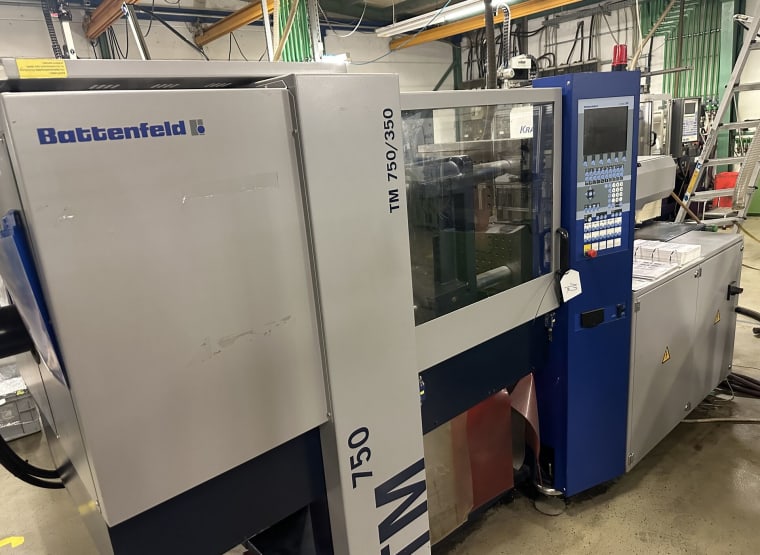

BATTENFELD TM 750/350 Injection molding machine
lot no. 12
1,440 €
5 Bids 17 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 10:11
Closing time
1,440 €
Current highest bid
Item details
- Name
- BATTENFELD TM 750/350 Injection molding machine
- Item number
- 883480
- Manufacturer
- BATTENFELD
- Model / Type
- TM 750/350
- Year of manufacture
- 2004
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 300.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 3,000 x 1,200 x 1,800 mm
- weight approx.
- 3,300 kg
Item description
"- Operating voltage: 400 V
- Frequency: 50 Hz
- Rated current: 63 A
- Hydraulic operating pressure: 220 bar
- Closing force: 750 kN
- Locking force: 825 kN
- Size of the clamping plates: 590 mm
- Hole diameter: 60 mm
- Light rail spacing: 370 mm
- Tool installation height adjustable from 200 – 400 mm
- Opening path at max. tool installation height: 330 mm
- Max. possible distance between the clamping plates: 730 mm
- Max. ejector force: 26 kN
- Ejector stroke: 100 mm
- Injection unit: 350"
- Frequency: 50 Hz
- Rated current: 63 A
- Hydraulic operating pressure: 220 bar
- Closing force: 750 kN
- Locking force: 825 kN
- Size of the clamping plates: 590 mm
- Hole diameter: 60 mm
- Light rail spacing: 370 mm
- Tool installation height adjustable from 200 – 400 mm
- Opening path at max. tool installation height: 330 mm
- Max. possible distance between the clamping plates: 730 mm
- Max. ejector force: 26 kN
- Ejector stroke: 100 mm
- Injection unit: 350"
Automatic translation
Auction details
- lot no.
- 12
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
