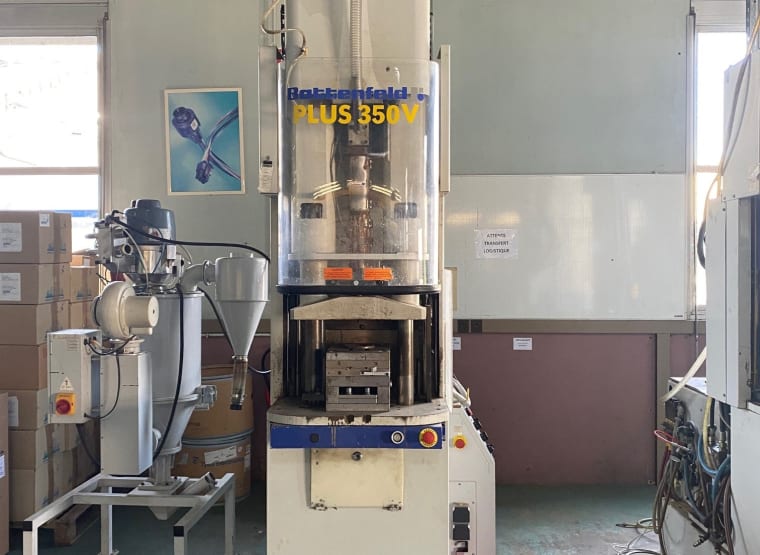

BATTENFIELD PLUS 350 V 75 Plastic Injection Moulding Machine
Top lot
lot no. 16
The auction is closed.
The auction is closed
Discover similar available items.
Item details
- Name
- BATTENFIELD PLUS 350 V 75 Plastic Injection Moulding Machine
- Item number
- 886182
- Manufacturer
- BATTENFIELD
- Model / Type
- PLUS 350 V 75
- Year of manufacture
- 1996
- Item available from
- immediately
- Item condition
- Location
-
France, region Ain
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- FCA, free on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 2,200 x 1,100 x 1,800 mm
- weight approx.
- 1,300 kg
Item description
Closing force: 35T T
Screw diameter: 22 mm
Distance between columns: 470 x 280 mm
Injectable volume: 38 cm³
Opening stroke: 200mm
Closing force: 350kN
Opening force: 24kN
Beam spacing: 270mm
Beam diameter: 60mm
Bottom mould tray dimensions: 620x495mm
Minimum clear opening: 200mm
Opening stroke: 200mm
Maximum distance between clamping plates: 400mm
Outward ejection force: 26.2kN
Injection lift: 100mm
Dry running time: 45 sec.
Power requirement: 7.5kW
Oil fill: 125L
Screw diameter: 22 mm
Distance between columns: 470 x 280 mm
Injectable volume: 38 cm³
Opening stroke: 200mm
Closing force: 350kN
Opening force: 24kN
Beam spacing: 270mm
Beam diameter: 60mm
Bottom mould tray dimensions: 620x495mm
Minimum clear opening: 200mm
Opening stroke: 200mm
Maximum distance between clamping plates: 400mm
Outward ejection force: 26.2kN
Injection lift: 100mm
Dry running time: 45 sec.
Power requirement: 7.5kW
Oil fill: 125L
