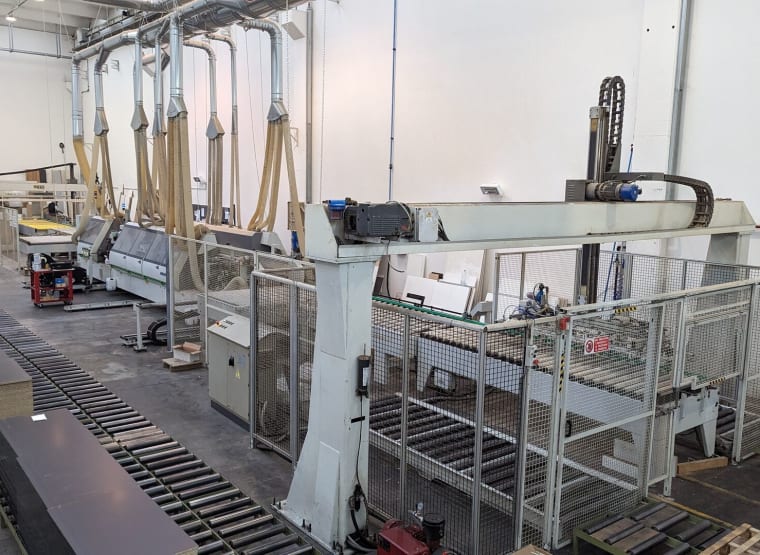

BIESSE STREAM SB2 10.5 Double-sided Edge Banding Line

BIESSE SQUARING-EDGEBANDING LINE

RBO LOADING SYSTEM
Panels tickness 10 - 50 mm
Panels length 320 - 3200 mm
Panels width 250 - 1200 mm
Panels weight 100 kg
Pile of panels max height 1550 mm
Power 6 KW
2x motorized roller conveyors on the ground size 4100 x 1060 mm each
Combination roller conveyor size 5000 x 1300 mm

PANEL TURNER

BIESSE SB 2 10.5 DOUBLE SQUARING-EDGEBANDING MACHINE (2009)

Panels length 240 - 1200 mm
Panels width 240 - 2700 mm
Panels height 10 - 60 mm
Edge thickness (coils) 0.3 - 3 mm
Max Edge thickness (strips) 20 mm
Edge height 15 - 65 mm
Feeding speed 10 - 40 m/min

COMPOSITION:

- PER-MILLING UNIT RT20
For diamond milling tools
Diameter 125 mm
Height 42 mm
Shaft diameter 30 mm
Z = 3+3

- GLUING UNIT WITH PRE-METER ZANIN NELLO (NEW 2021)

- 6 COILS HOLDER
- END-TRIMMING IT90-S
For WIDIA milling tools
Diameter 130 mm
Z = 24
- ROUGH-TRIMMING UNIT RS10
For WIDIA milling tools
Diameter 80 mm
Z = 6
- FINE TRIMMING UNIT RF10
For WIDIA milling tools
Diameter 70 mm
Z = 6
- MULTI-FUNCTION MILLING UNIT AR30
For WIDIA milling tolls
Diameter 60 mm
Z = 6
- UNIVERSAL MILLING TOOL FB30
- UNIVERSAL MILLING TOOL FB40
- EDGE-SCRAPING UNIT RB10
- GLUE-SCRAPING UNIT RC20
- BUFFING UNIT SZ30
- BRIGHTENING UNIT PH10

PANEL TURNER

UNLOADING SYSTEM TOMASSINI OMEGA 100 C/S (1999)
1 Combination roller
Vacuum lifter
​2x Motorized roller conveyors on the ground for panels accumulation
