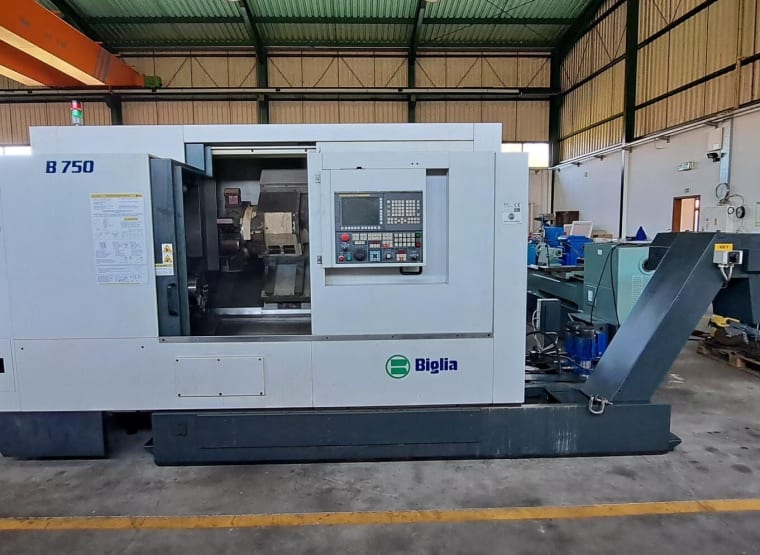

BIGLIA B 750 CNC Lathe

BIGLIA B750 CNC Lathe
Standard Machine with CNC automatic tailstock

MACHINING CAPACITY
Max. bar machining diameter__________(mm)       70       |       80      |   93/100
Max. suggested machining diameter__(mm)   552/350  |  552/450  |     552
Max. machining length_________________(mm)                       765 (1)
Max. swing over diameter______________(mm)                      680/500
(1) Ø 250 Chuck
___________________________________________________________________________
MAIN SPINDLE
Max. speed________________(rpm)   4500  |     3200     |      3000
Spindle nose_______________(ASA)    6”     |        8”      |        8”
Spindle bore________________(mm)   77.5  |       91       |   106/111
Inside diam. of bearings____(mm)   110   |      130      |      150
Chuck diameter___________(mm)    250   |      315      |      400
Motor power (S1-S3)_______(kW)   30-40 |    15-22     |     30-38
Max. torque (S1-S3)_______(Nm)     286   |  398-700   |  800-1014
___________________________________________________________________________
TURRET
No of tools_________________(Nº)           16/12
Tool shank for OD turning_(mm)          25x25
Tool shank for ID turning__(mm)    32-40 / 40-50
Turret indexing (1 pos)______(sec)              0,3
___________________________________________________________________________
AXES
X-axis stroke____________(mm)      305
Z-axis stroke____________(mm)      860
X-axis rapid traverse__(m/min)   18
Z-axis rapid traverse__(m/min)   24
___________________________________________________________________________
B-AXIS TAILSTOCK
Morse taper_____________________(MT)    4-5
B-axis automatic positioning__(mm)     910
B-axis rapid traverse__________(m/min)  15
___________________________________________________________________________

• Dimensions   (chip extractor included) 507 cm/ 203 cm/ 222 cm
