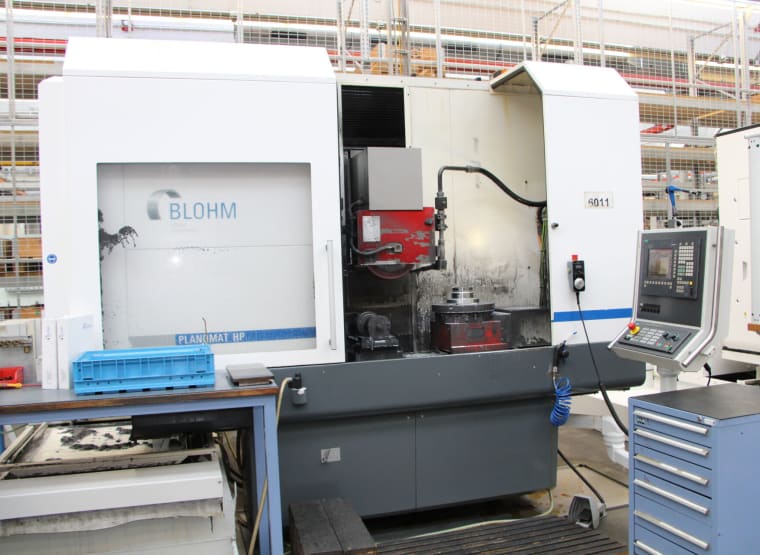

BLOHM PLANOMAT HP 408 Precision Surface and Profile Grinding Machine
lot no. 40
17,500 €
15 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
14/02/24 14:11
Closing time
17,500 €
Starting bid
Item details
- Name
- BLOHM PLANOMAT HP 408 Precision Surface and Profile Grinding Machine
- Item number
- 850556
- Manufacturer
- BLOHM
- Model / Type
- PLANOMAT HP 408
- Year of manufacture
- 2008
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 45549 Sprockhövel
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 3,900.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Sprockhövel, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 4,600 x 4,000 x 2,600 mm
- weight approx.
- 4,100 kg
Item description
Control: SIEMENS Sinumerik 840 D
Grinding area:
Grinding area:
- Length x width: 800 x 400 mm
- distance table - spindle center max.: 700 mm
- Three-phase motor power: 15 kW from 1000 1/min
- grinding spindle speed adjustable: 45 - 8000 1/min
- Roller bearing spindle with permanent grease lubrication
- direct drive via flexible coupling
- insertion diameter: 140 mm
- Short taper with face contact
- grinding wheel max. (D x W x d): 400 x 80 x 127 mm
- Grinding head vertical travel: 550 mm
- Distance, spindle center-table: 150 - 700 mm
- Linear guide system with roller bearings
- Drive system: ball screw
- Drive by digital three-phase servo motor, planetary gearbox
- Speed preselection by parameter, feed correction by override switch
- Speed: 4 - 6000 mm/min
- Acceleration, max.: 2 m/s²
- Displacement measuring system: linear scale with input/output unit: 0.001 mm
- Magnetic clamping plate size: 800 x 400 mm
- Table longitudinal travel, max.: 900 mm
- Table clamping surface with additional surfaces: 1200 x 400 mm
- Table clamping surface with clamping flute 14 H7
- Table height above floor, approx.: 960 mm
- Table load max.: 800 kg
- Linear guide system with roller bearings
- Drive system: ball screw
- Drive by digital three-phase servo motor
- Speed preselection via parameter, feed correction by override switch
- Speed: 30 - 40000 mm/min
- Acceleration, max.: 3 m/s²
- Displacement measuring system: angular step encoder with input/output unit: 0.001 mm
- Column cross travel, max.: 360 mm
- Etched bearing linear guide system
- Drive system: ball screw
- Drive by digital three-phase servo motor.
- Speed preselection by parameter, feed correction by override switch.
- Speed: 4 - 6000 mm/min
- Acceleration, max.: 2 m/s²
- Displacement measuring system: linear scale with input/output unit: 0.001 mm
- Space requirement, with coolant system (W x D), approx.: 4600 x 4000 mm
- Machine height, approx.: 2550 mm
- Power consumption of the machine, approx.: 30 kVA,
- weight of the machine (incl. control cabinet), approx.: 4100 kg
Automatic translation
Auction details
- Auction name
- Machines and Accessories (Metalworking) 14/02
- lot no.
- 40
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
No fixed date. The items are in different locations (see item description). Viewing by appointment only!
