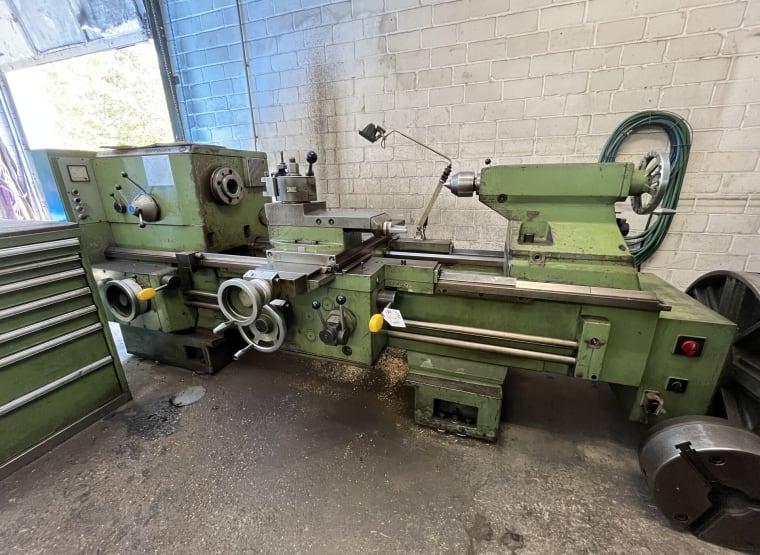

BOEHRINGER V800 lathe

Serial number: 1049.0614
Swing diameter over bed: 820 mm
Swing diameter over the short facing slide: 575 mm
Swing diameter over the long facing slide: 515 mm
Swing diameter in the offset: 1040 mm
Length of the offset in front of the normal face plate: 390 mm
Permissible workpiece weight for normal main spindle without use of a steady rest: 2000 kg
With one steady rest: 2500 kg
With two steady rests: 3150 kg
Main spindle speeds:

Quantity: 24
With normal main spindle: 7.1 – 1400 rpm
Work travels:

Of the facing slide: 450 mm
Of the top slide: 250 mm
Of the tailstock quill: 280 mm
Center height above flat track: 400 mm
