Item details
- Name

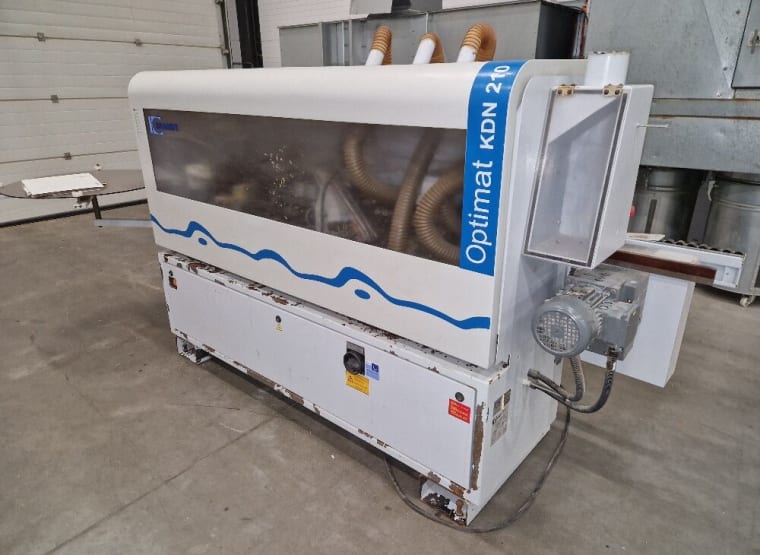

- BRANDT KDN210 Edgebander
- Item number
- 873788
- Manufacturer
- BRANDT
- Model / Type
- KDN210
- Year of manufacture
- 2007
- Item available from
- immediately
- Item condition
- Location
-
Netherlands, 7468 DC Enter
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 175.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Enter, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- workpiece thickness
- 8 - 50 mm
- Approx. Onsite Dimension. (l x w x h)
- 3,500 x 1,200 x 1,500 mm
- weight approx.
- 1,000 kg
Item description
- Control: Easy Control Speed-controlled track control with optical start-stop indication sensors Control screen LCD
- Ergonomically integrated on the input side on the hood YouTube
- Configuration
- Chain conveyor transport
- Central lubrication Above pressure/guidance
- Via central adjustment with 2 rows of rollers positioned in offset to each other
- Loading unit
- A3 labeling unit for hot melt and possibility of PU lubrication
- Lubricating roll under workpiece in travel or counterflow
- machete in weighted version Pressure zone
- Pneumatically rotated 1st pressure roller
- 2nd roller free-running ensures good compaction
- Capacities:2 * 0.18 KWW
- 12,000 rpm
- Radial free
- Chamfer/radius2 * 0
- 27 KW in backlash
- 200Hz
- 12,000 rpm
- equal 3 positions; manual adjustment siko counters
- max 3 mm edge banding
- Profile scrapers
- Quick-change system
- max 3 mm edge banding
- Chain width: 80 mm
- Edge thickness: min. 0.3 mm / max. 3.0 mm
- Band cap device: 0.4 - 3.0 mm (Max. 3.0*30/1.0*40 mm) Edgebanding width
- Workpiece height +5 mm (45 mm)
- Workpiece width: At workpiece thickness 8-22mm 70 mm*
- At workpiece thickness 23-40mm 120 mm* *depending on workpiece length
- Tool overhang: min. 38 mm
- Throughput 8 m/min
- Working height: 950 mm
- Pneumatic adjustment min. 6 bar
- Machine length 3,780 mm
