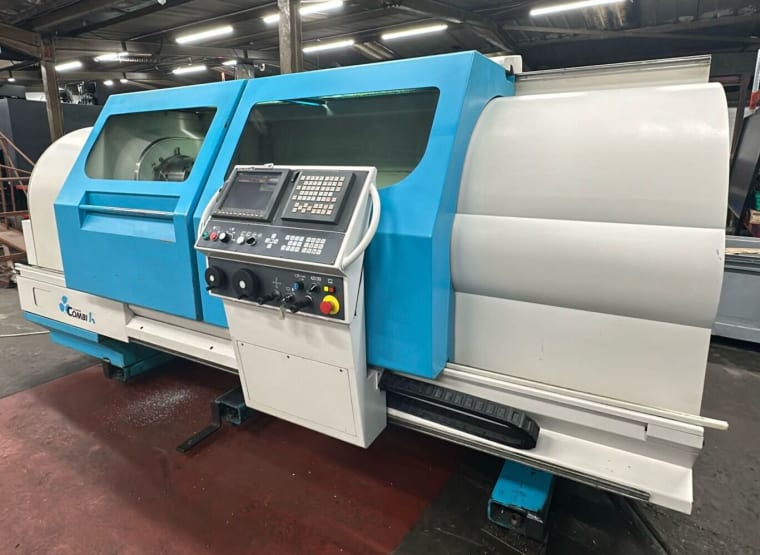

COLCHESTER Combi K4 Slant Bed CNC Lathe

Colchester Combi K4 CNC Lathe

Date of Manufacture : – 2001

Swing over bed 554mm

Swing in gap 830mm

Swing over cross slide 370mm

Distance between centres 2000mm

X axis cross slide travel 290mm

Spindle nose (Camlock) D1-11

Spindle motor 18.5/22kW

Spindle speeds (programmable) 4-1800rpm

X axis ballscrew, diameter x pitch 25 x 4mm

Z axis ballscrew, diameter x pitch 40 x 10mm

Tailstock quill taper No. 6 MT

Tailstock quill travel 145mm

Bedway width (30 degree slant) 405mm

3 Jaw chuck

8 Station VDI turret and 8 off tool holders

Guarding

Coolant system

Lighting

Important! The machine must be picked up by the customer between February 5-9, 2024! Otherwise, the machine may need to be relocated and stored. Customer is liable for these costs!
