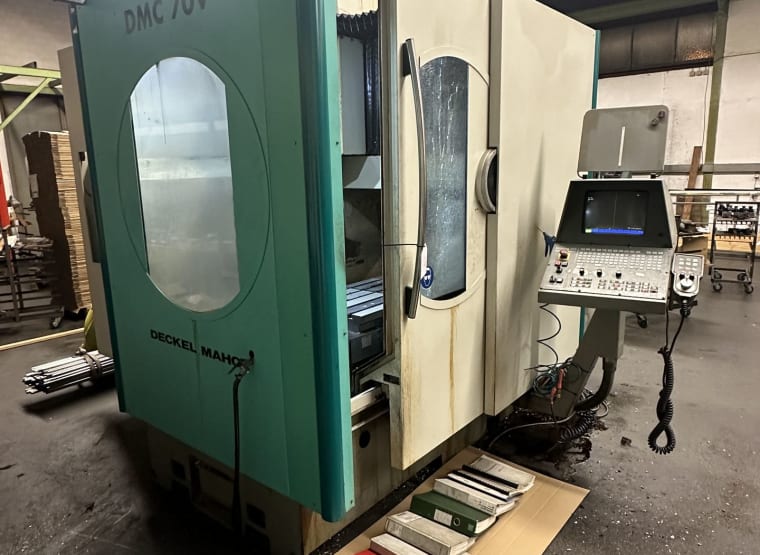

DECKEL MAHO DMC 70 V Vertical Machining Centre
lot no. 180
3,300 €
5 Bids 13 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 12:58
Closing time
3,300 €
Current highest bid
Item details
- Name
- DECKEL MAHO DMC 70 V Vertical Machining Centre
- Item number
- 883636
- Manufacturer
- DECKEL MAHO
- Model / Type
- DMC 70 V
- Videos
-
Video 1 - Year of manufacture
- unknown
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73529 Schwäbisch Gmünd
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 400.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Schwäbisch Gmünd, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 8,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 5,000 x 2,800 x 2,900 mm
Item description
"Serial number: 2881-0371
Operating voltage: 400V
Frequency: 50/60 Hz
Rated current: 70 A
Connection: 40 kVA
Control: GRUNDIG DIALOG112
Feed speed in X, Y and Z axes: 1 – 10000 mm/min
Rapid traverse X, Y axis: 30000 mm/min
Rapid traverse Z-axis: 20000 mm/min
Table dimensions: 900 x 550 mm
Permissible load: 800 kg
Installation height: max. 590 mm
With 5 grooves
Distance spindle nose/table: min. 150 mm, max. 650 mm
Travel paths:
X: 700mm
Y: 550mm
Z: 500mm
Tool holder: SK 40
Max. tool diameter: 200 mm
Max. speed for tool diameter: 4500 rpm
Incl. a 30-fold tool turret
Tool diameter in the tool magazine: max. 80 mm standard tool Max. 140 mm for special tools
Max. 200 mm for swing-out bridges
Tool length from spindle nose: max. 300 mm
Max. tool weight: 12 kg
Incl. the SK 40 tool holders located in the tool changer and the clamped cutting tool
Also included as a spare part is a suitable tool changer
With a chip conveyor and a coolant system
Attention: The protective pane is broken, but only on one side of the double glazing."
Operating voltage: 400V
Frequency: 50/60 Hz
Rated current: 70 A
Connection: 40 kVA
Control: GRUNDIG DIALOG112
Feed speed in X, Y and Z axes: 1 – 10000 mm/min
Rapid traverse X, Y axis: 30000 mm/min
Rapid traverse Z-axis: 20000 mm/min
Table dimensions: 900 x 550 mm
Permissible load: 800 kg
Installation height: max. 590 mm
With 5 grooves
Distance spindle nose/table: min. 150 mm, max. 650 mm
Travel paths:
X: 700mm
Y: 550mm
Z: 500mm
Tool holder: SK 40
Max. tool diameter: 200 mm
Max. speed for tool diameter: 4500 rpm
Incl. a 30-fold tool turret
Tool diameter in the tool magazine: max. 80 mm standard tool Max. 140 mm for special tools
Max. 200 mm for swing-out bridges
Tool length from spindle nose: max. 300 mm
Max. tool weight: 12 kg
Incl. the SK 40 tool holders located in the tool changer and the clamped cutting tool
Also included as a spare part is a suitable tool changer
With a chip conveyor and a coolant system
Attention: The protective pane is broken, but only on one side of the double glazing."
Automatic translation
Auction details
- lot no.
- 180
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
