Auction Plastics Processing Machinery - France

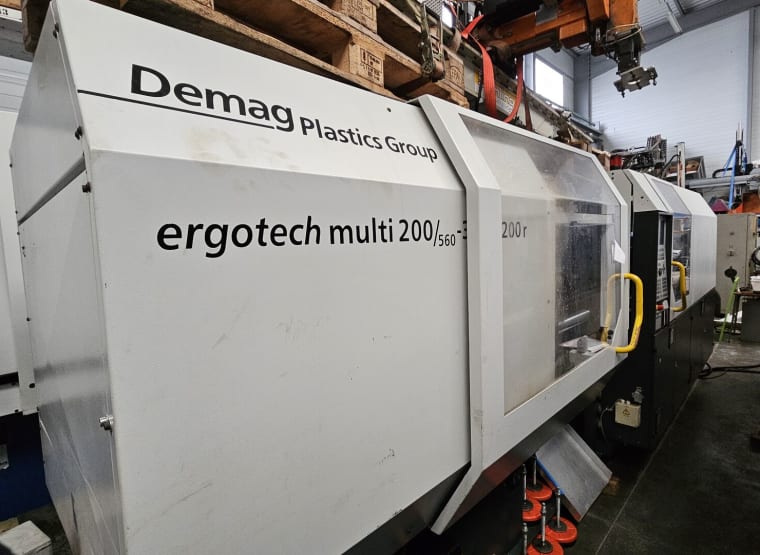

DEMAG ERGOTECH 200T BI-MATIERE MULTI 200/560-320H200R Plastic Injection Moulding Machine
Top lot
lot no. 1
The auction is closed.
The auction is closed
Discover similar available items.
Item details
- Name
- DEMAG ERGOTECH 200T BI-MATIERE MULTI 200/560-320H200R Plastic Injection Moulding Machine
- Item number
- 886186
- Manufacturer
- DEMAG ERGOTECH 200T BI-MATIERE
- Model / Type
- MULTI 200/560-320H200R
- Year of manufacture
- 2004
- Item available from
- immediately
- Item condition
- Location
-
France, region Ain
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- FCA, free on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 5,700 x 1,700 x 2,600 mm
- weight approx.
- 11,500 kg
Item description
Spacer: 150 mm
Screw diameter: 320H: 30 mm / 200 R: 30mm
Injection volume : 320H : 124 cm3 / 200 R: 106 cm3
Injection pressure : 320 H : 2420 bar / 200 R : 2400 bar
Distance between tie-bars HxV : 560 x 560 mm
Minimum mould thickness 310 mm
Opening stroke: 575 mm
Cores : 4
Mould zones: 16
Sequential injection
Equipped with a DEMAG (Wittmann) 3-axis digital robot
Screw diameter: 320H: 30 mm / 200 R: 30mm
Injection volume : 320H : 124 cm3 / 200 R: 106 cm3
Injection pressure : 320 H : 2420 bar / 200 R : 2400 bar
Distance between tie-bars HxV : 560 x 560 mm
Minimum mould thickness 310 mm
Opening stroke: 575 mm
Cores : 4
Mould zones: 16
Sequential injection
Equipped with a DEMAG (Wittmann) 3-axis digital robot
