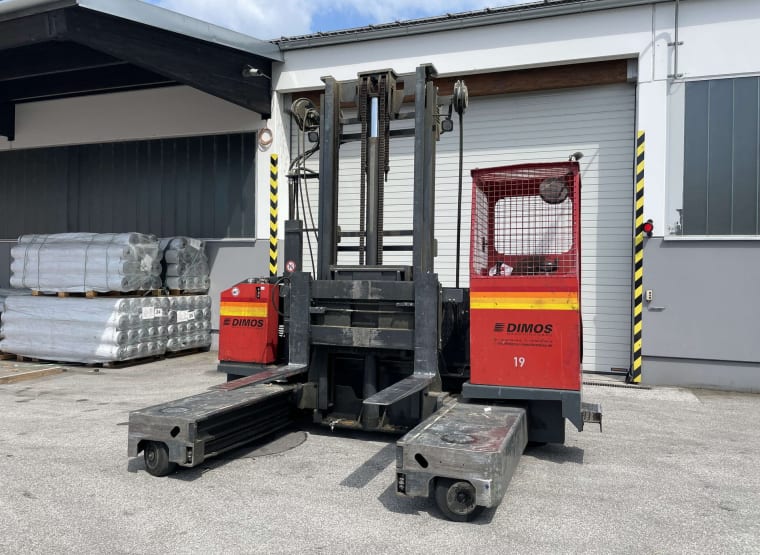

DIMOS DMS 50/50-P-PU 4-Way Forklift

Machine no.: 1412052, year of manufacture: 2015, battery voltage: 80 V, operating hours: 13,979 h, incl. 2 batteries (year of manufacture 2019),
Attention: excluding charging station, this is not included in the lot.

Technical data: H of overhead guard 2,640 mm plus approx. 160 mm for rotating beacon, H over mast: 3,575 mm, frame L: 3,775 mm + 180 mm cab overhang, L over fork carriage: 1,500 mm, front boom dimension: 1,200 mm, effective width: 1,300 mm, frame W: 2,500 mm, mast advance: 1. 400 mm, H over wheel frame: 500 mm, ground clearance: 150 mm, turning radius: approx. 2,260 mm, load capacity: 5,000 kg at LSP 650 mm up to lift height H3 is 5,000 mm, mast type: SIMPLEX partial free lift, retracted H: 3,575 mm, free lift: 560 mm, lift H: 5,030 mm, extended H: 6,000 mm
Driver's cab: open design Drive: electric

Condition note: various abrasions, signs of wear and tear

Dimensions of the truck:
Height = 3500 mm
Width = 2500 mm
Length = 4000 mm
Weight: 6800 kg

Dimensions of battery: (2 pieces)
Length = 2050 mm
Width = 500 mm
Height = 900 mm
Weight: 2255 kg

Location: A-4282 Tragwein
