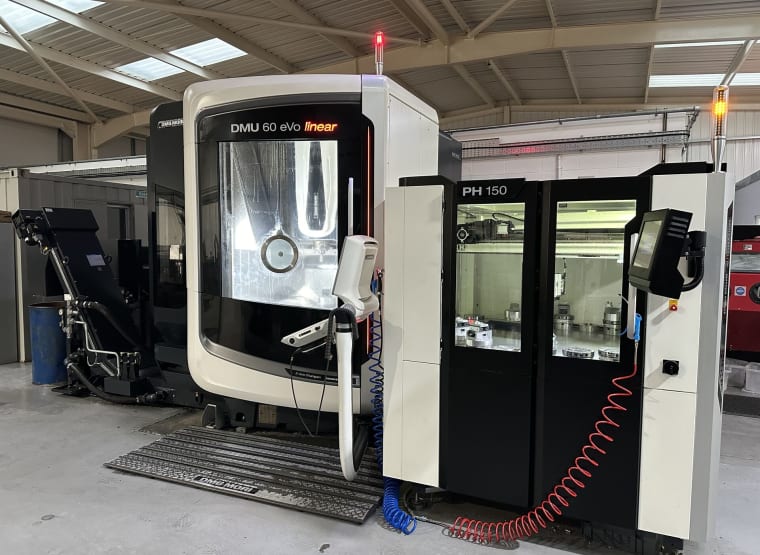

DMG MORI DMG 60 eVo Linear Universal Machining Centre

Basic Machine
Universal machining centre DMU 60eVo New DMG MORI Design
traverse path X/Y/Z 600/500/500 mm / X/Y/Z 23.6/19.6/19.6 in motorspindle speedMASTER® SK 40/BBT
speed range 20 - 18.000 min-1 SK40
speed range 18.000 - 20.000 min-1 SK40-BIG PLUS® 35 kW (40% ED); 25 kW (100% ED)
46.9 hp (40% DC); 33.5 hp (100% DC)
tool taper SK40 (DIN ISO 7388-1-A, AD)
for Pull-Studs DIN ISO 7388-3-A, AD NC swivel rotary table
chain type tool changer with 30 positions and double gripper active cooling
direct measuring system full cabin
Swarf conveyor (scraper type); spray gun MPC (Machine Protection Control)
3D-Control, ERGOline® control
Dynamic package for DMU 60 eVo linear
linear drive X/Y-axis with 80 m/min // 262.48 ft/min rapid feed X/Y/Z 80 m/min // 262.48 ft/min, Acceleration X/Y/Z 10 m/s² // 32.8 ft/s²

Control
CELOS with Siemens 840D sl Operate includes 21,5“ ERGOline® Control with Multi-Touch-Screen.

Spindle
Motor spindle speedMASTER® HSK-A63
Spindle speed 20 - 20,000min1
Output 35 kW / 25 kW (47 hp / 33 hp)
Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs)
(40 / 100 % duty cycle)

Working Table
NC rotary table with swivel axis, size 600 x 500mm / 23.6 x 19.6in, swiveling range B-axis -5° to 110°,
C-axis 360°,
table load 400kg/ 881lb, direct measuring systems, incl. cooling of the table

Tool Magazine
Tool magazine with 120 positions, chain type with double gripper (differently from standard)

Cooling media/chip removal
Internal coolant supply (ICS) with paper type filter,
40 bar/23 l/min / 600-l tank
580 psi/6 gallon/min /160 gallon
air purge for linear measuring system, bed flushing
Extended swarf flushing
Additional flushing of the working area door left hand side, y axis and right cabin wall volume of the flushing adjustable manual (only in combination with internal coolant)
Double cartridge filter,
Finesse of filtration 25 µm
(only in combination with internal coolant)
Rotating clear-view window
Oil and emulsion mist separator Mechanical

Measuring/Monitoring
Infrared touch probe
type Renishaw PP 60 optical (OMP60
Laser tool measuring of tool length and diameter, automatically turn away of the measuringunit under table level including Calibration tool
Machine preparation for use of the 3D quickSET Toolkit.
included is the Softwareoption for 3D quickSET for one machine.
5 axis machine configurations (only with option touch probe)

Deckel Maho PH150
Pallet loading / unloading system PH 150 with handling arm and pallet magazine
PH 150 system enhancement to pallet
Ø148 mm / 5.83 in with max. 24 pallet storing pockets

Please note no tooling or Lang workpiece holders are included.
