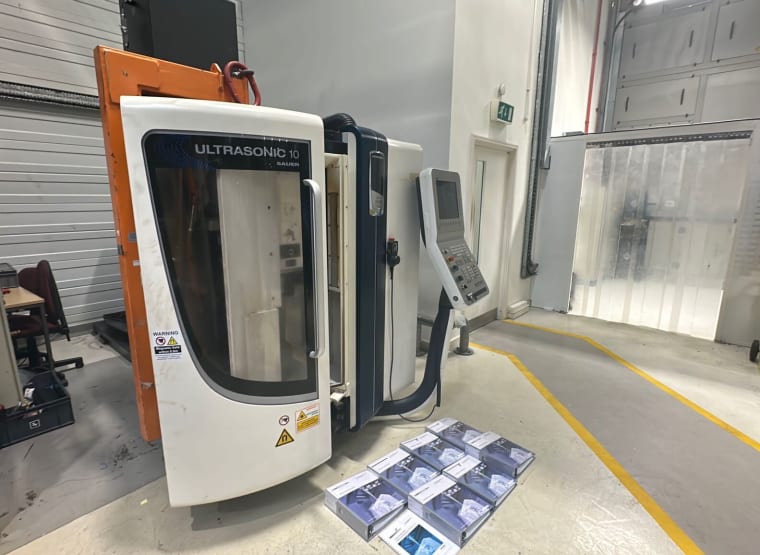

DMG Ultrasonic 10 5 Axis CNC Machining Centre
lot no. 3
15,000 €
18 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
22/02/24 16:02
Closing time
15,000 €
Starting bid
Item details
- Name
- DMG Ultrasonic 10 5 Axis CNC Machining Centre
- Item number
- 885009
- Manufacturer
- DMG
- Model / Type
- Ultrasonic 10
- Year of manufacture
- 2013
- Item available from
- Immediately
- Item condition
- Location
-
United Kingdom (Great Britain), S60 5TZ Rotherham
- Show on map
- All items at this location
- Country restriction
Costs and benefits
- 18 %
- 2,900.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Rotherham, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
- Security deposit
Technical details
- z-motion
- 200 mm
- x-motion
- 120 mm
- y-motion
- 120 mm
- control
- SIEMENS DMG SLIMLINE control
- pallet table size
- ø 190 mm mm
- taper
- HSK 32
- toolchanger positions
- 60
- weight approx.
- 1,800 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,100 x 3,700 x 2,300 mm
Item description
Number of Axes: 5
Tool Magazine: Linear, Chain
Machined Parts Warehouse: Ph 2 | 120
A axis: -10 ° to 120 °
C axis: 360 °
Primary Drive
Main spindle: USB 40
Max rotation speeds ULTRASONIC: 40,000 rpm
Max milling speed range: 40,000 rpm
Feed speed range: up to 10,000 mm / min
Rapid traverse (X / Y / Z): 10 m / min
Working Table:
Clamping surface: ø 190 mm
Maximum table load: 5 kg
Max.speed of rotary axes: (A / B / C): 100 / – / 150rpm
Max tool length with full capacity and maximum speed: 130mm
Max tool diameter with full filling and maximum speed: 49mm
Hours: 5033 .
7 Tool holders HSK32 S.
Sindle probe.
Erowa quick set fixture (ER-069153) with 2 fixturing plates.
Please be aware of a power source issue in the machine. The estimated cost for repairs is £5000.
