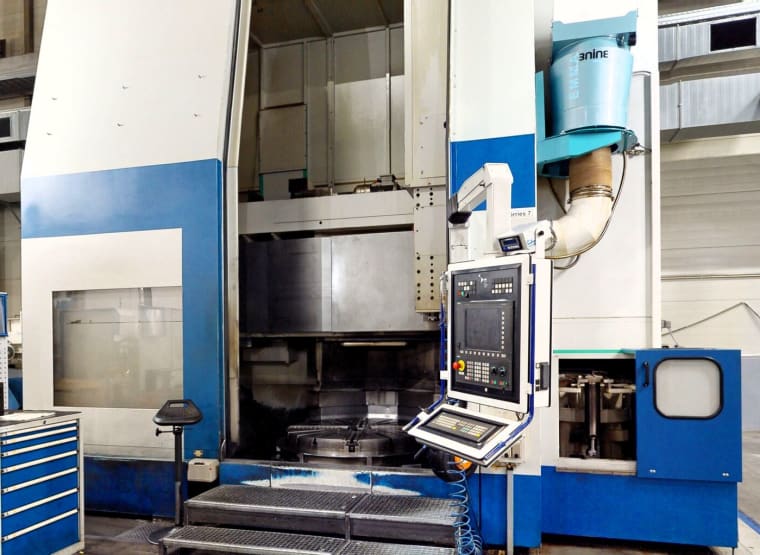

DÖRRIES SCHARMANN VCE 1600/140 SM Vertical Lathe
Item details
- Name
- DÖRRIES SCHARMANN VCE 1600/140 SM Vertical Lathe
- Item number
- 887777
- Manufacturer
- DÖRRIES SCHARMANN
- Model / Type
- VCE 1600/140 SM
- Documents
- Technische_Daten_VCE_1600_140_SM.pdf
- Year of manufacture
- 2008
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 01665 Klipphausen
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Klipphausen, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- turning height
- 1,285 mm
- swing diameter
- 1,600 mm
- control
- SIEMENS Sinumerik 840 D
- turning speed range
- 400 rpm
- feed range
- 0- 18000 mm/min
- weight approx.
- 42,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 7,600 x 5,200 x 5,400 mm
Item description
The vertical turning machine is of high quality and is ideal for demanding turning work in metalworking. With its precise control and extensive equipment, it is a reliable and powerful machine for professional applications.
Control and Machine Number
Working area and Machine dimensions
Machine table
Performance data of the machine table
Speeds and Feeds
Cross beam support
Control and Machine Number
- Control: SIEMENS Sinumerik 840D
- Machine number: V-800294
Working area and Machine dimensions
- Rotation and machining diameter: 1600 mm
- Turning height with basic column version: 1285 mm
Machine table
- Table diameter: 1400 mm
- Centre centring of the table: 250 H7 mm
- Number of recessed base slides: 4
- Clamping force/tightening torque of the recessed base slides: 40 kN / 300 Nm
- Workpiece weight: 9000 kg
Performance data of the machine table
- Drive power of the machine table (continuous load): 80 kW
- Torque on the machine table: 19900 Nm
- Speed: 400 min-1
- Speed stages of the main gearbox: 2
Speeds and Feeds
- Vertical travel of the crossbeam: 100 mm
- Dependent on turning height, Z-axis, table and magazine design
- Positioning of the crossbeam - grid spacing: 400 mm/min
- Adjustment speed of the crossbeam: 250x250 mm
Cross beam support
- Chisel slide cross-section: 250 x 250 mm
- Plunge-cut diameter: 340 mm
- Tool holder for toolholder and accessories: Capto C6 manual
- X-axis, horizontal path of the crossbeam support: ±950 mm
- Z-axis, vertical travel of the chisel slide: 1100 mm
- Cutting force during turning: 50000 N
- Feed force on the chisel slide (X and Z): 35000 N
- Feed range of the X-axis: 18000 mm/min
- Feed range of the Z-axis: 18000 mm/min
