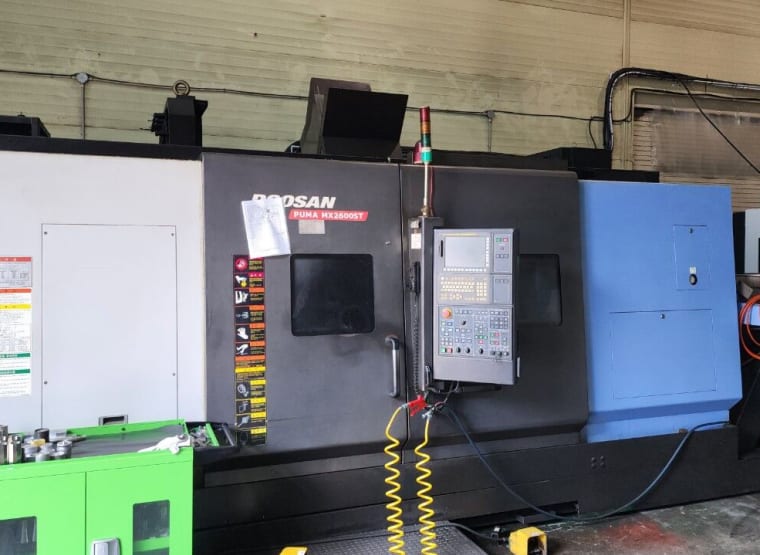

DOOSAN Puma MX2600ST CNC Turning & Milling Centre
Item details
- Name
- DOOSAN Puma MX2600ST CNC Turning & Milling Centre
- Item number
- 850665
- Manufacturer
- DOOSAN
- Model / Type
- Puma MX2600ST
- Year of manufacture
- 2011
- Item available from
- unknown
- Item condition
- Location
-
South Korea, 153803 Seoul
- Show on map
- All items at this location
Costs and benefits
- 12,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Seoul, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- control
- Fanuc 31i-A5
- Approx. Onsite Dimension. (l x w x h)
- 6,070 x 3,011 x 2,682 mm
- toolchanger positions
- 80
- weight approx.
- 15,500 kg
Item description
- Max cutting dia.: 760 mm
- Recommended cutting dia.: 330 mm
- Max cutting length.: 1540 mm
- Bar capacity: 76 mm
- Spindle nose: A2-8
- Headstock spindle: 4000 rpm
- Sub spindle speed: 4000 rpm
- Y axis travel: 230mm
- C axis index: 0.001 degree
- B axis +- 120 degree
- Milling spindle: CAPTO C6
- Milling spindle: 12,000 rpm
- 8” chuck for main & for sub spindle
- C axis
- Lower turret 16 position
- Main & Sub motor: 22/26 kw
- Milling spindle: 15 kw
- 80 tool ATC
- Chip conveyor
Includes shipping to any major seaport in the world.
