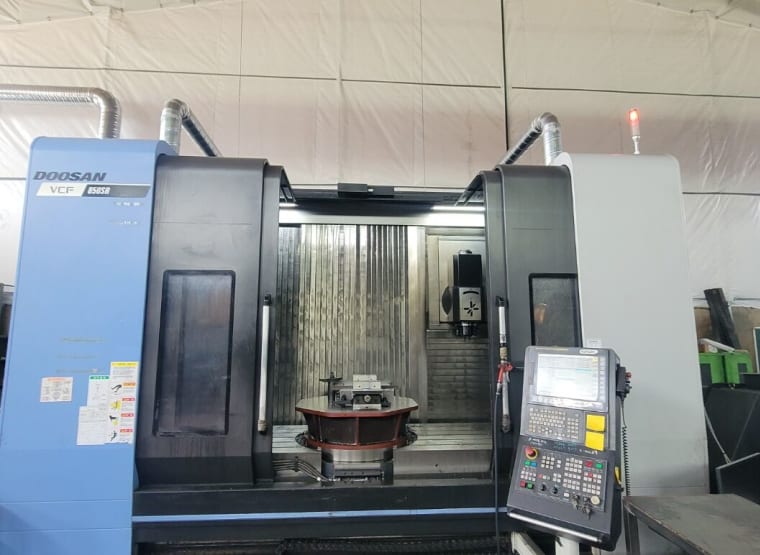

DOOSAN VCF-850SR Multipurpose Vertical Machining Centre
Item details
- Name
- DOOSAN VCF-850SR Multipurpose Vertical Machining Centre
- Item number
- 823823
- Manufacturer
- DOOSAN
- Model / Type
- VCF-850SR
- Year of manufacture
- 2016
- Item available from
- immediately
- Item condition
- Location
-
South Korea, 153803 Seoul
- Show on map
- All items at this location
Costs and benefits
- 16,000.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Seoul, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- z-motion
- 800 mm
- x-motion
- 2,000 mm
- y-motion
- 850 mm
- control
- Fanuc 31iA-5AX
- table surface area l x w
- 2500 x 870 mm
- toolchanger positions
- 60
- power capacity - spindle
- 18.5/22 kW
- turning speed range
- 12,000 rpm
- weight approx.
- 22,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 3,795 x 4,440 x 3,205 mm
Item description
- Table size: 2500x870mm/3500kg load
- Rotary table: 800mm dia/1200kg load
- XYZB : 2000x850x8500mm x +-110 degree
- Rotary table: dia 800mm
- Spindle taper: BT40
- Spindle speed: 12000rpm
- 18.5/22kw spindle motor
- 60 tool ATC
- Scales XYZ axis
- Chip conveyor
Includes shipping to any major seaport in the world
