Item details
- Name

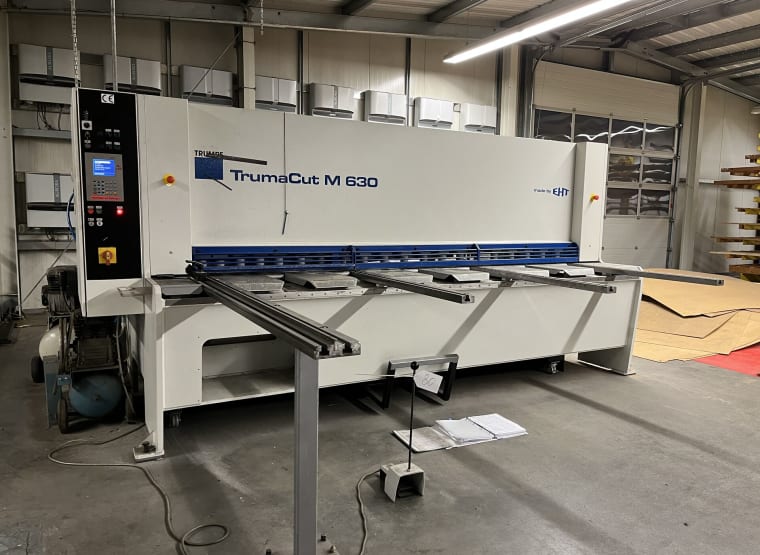

- EHT/TRUMPF TRUMACUT M 630 Shearing machine
- Item number
- 888698
- Manufacturer
- EHT/TRUMPF
- Model / Type
- TRUMACUT M 630
- Year of manufacture
- 2006
- Item available from
- immediately
- Item condition
- Location
-
Germany, 77731 Willstätt-Sand
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 500.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Willstätt-Sand, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- weight approx.
- 7,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 4,000 x 4,000 x 1,900 mm
Item description
Machine number: B0611A0055
Operating voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Rated current: 39 A
Connection: 11 kW
Oil volume: 150 L
Table height: 900 mm
Knife length: 3100 mm
Cutting edges top/bottom: 4/4
Cutting thickness with material strength 450 N/mm²: 6 mm
Cutting length: max. 3050 mm
Stop range from cutting line: 10 - 1000 mm
Adjustment speed fence: max. 180 mm/s
Cutting angle: 0.5 - 2.5°
Cutting gap: 0.05 - 0.72 mm
Stroke number: 18 - 38/min
Attention: the machine can be transported on a normal Stadard truck
Operating voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Rated current: 39 A
Connection: 11 kW
Oil volume: 150 L
Table height: 900 mm
Knife length: 3100 mm
Cutting edges top/bottom: 4/4
Cutting thickness with material strength 450 N/mm²: 6 mm
Cutting length: max. 3050 mm
Stop range from cutting line: 10 - 1000 mm
Adjustment speed fence: max. 180 mm/s
Cutting angle: 0.5 - 2.5°
Cutting gap: 0.05 - 0.72 mm
Stroke number: 18 - 38/min
Attention: the machine can be transported on a normal Stadard truck
