EKOGLOBAL 03600 Extraction- and Filter Systems AFL

• Station 1:
  • type of filter: OS 600
  • capacity of the station: 44000 m3/hour.
  • size of the filter area: 600 m2
  • filtration capacity: 10 mg/m3
  • fan: VRVP 1250
  • fan capacity: Q=12,2 m3/sec
  • power of the electric motor: 75 kW
  • dimensions of the filter: 2500 x 7500 x 6000 mm
  • weight of the station: approx. 11 tons
• Station 2:
  • type of filter: OS 400
  • capacity of station no.2: 34 000 m3/hour
  • size of the filter area: 400 m2
  • filtration capacity: 10 mg/m3
  • fan: VRVP 1250
  • fan capacity: Q=9,44 m3/sec
  • power of the electric motor: 75 kW
  • dimensions of the filter: 2500 x 7500 x 6000mm
  • weight of the station: approx. 8 tons
• Station 3:
  • type of the filter: OS 400
  • capacity of station no.3: 29 250 m3/hour
  • size of the filter area: 400 m2
  • filtration capacity: 10 mg/m3
  • fan: VRVP 1000
  • fan capacity: Q=8,1 m3/sec
  • power of the electric motor: 55 kW
  • dimensions of the filter: 2500 x 5000 x 6000mm
  • weight of the station: approx. 8 tons
• Station 4:
  • type of the filter: OS 400
  • capacity of station no.4: 25 000 m3/hour.
  • size of the filter area: 400 m2
  • filtration capacity: 10 mg/m3
  • fan: VRVP 1000
  • fan capacity: Q=6,94 m3/sec
  • electric motor power: 45 kW
  • dimensions of the filter: 2500 x 5000 x 6000 mm
  • weight of the station: approx. 8 tons

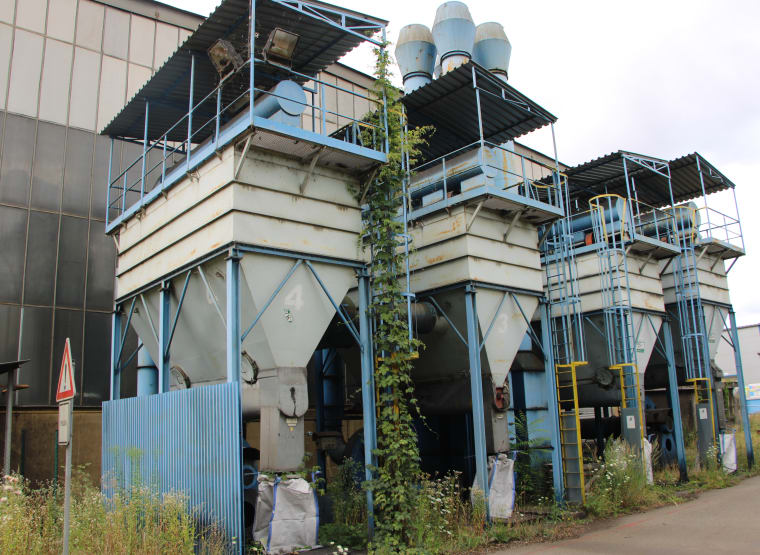

These are 4 filter stations of the OS type, which are used for the extraction of dust generated during transport and regeneration of the bentonite mixture. The filter stations are of the same design. Stations 2-4 are of size OS 400 and station 1 is a larger version - OS 600. Each station consists of chambers with pocket filters mounted on a steel structure, then a hopper with a collecting screw and dust discharge into a big bag equipped with a gravity flap, in the upper part of the station there are mechanical flushing-regeneration systems. The suction power is provided by VRVP fans with "direct" motors. The exhaust duct of the fans is led through silencers to vertical extractors.
