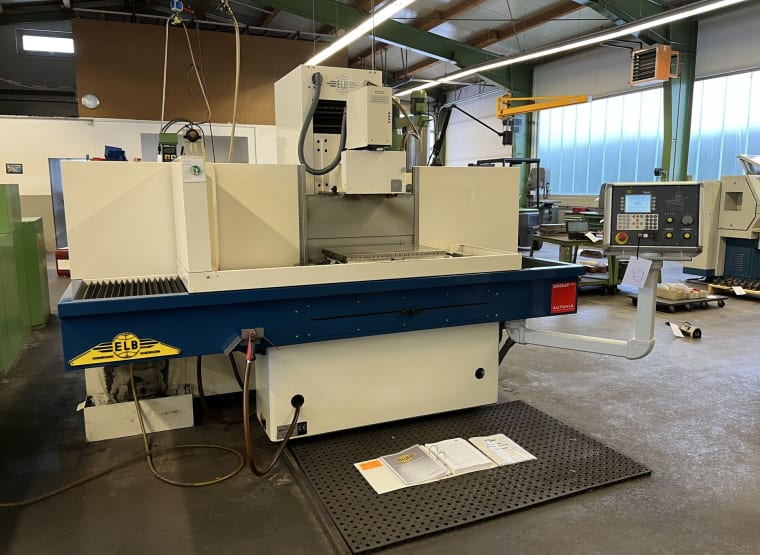

ELB Smart N6 Comfort Surface Grinding Machine

ELB Smart N6 Comfort Surface Grinding Machine
Top lot
lot no. 50
Closes in 1d 0h 24/01/24 10:49
14,650 € Current highest bid
30 Bids 52 watchers
Log in to bid
Use bidding agent
+ auction fee & VAT
ELB Smart N6 Comfort Surface Grinding Machine
Closes in 1d 0h
Closing time
14,650 €
Current highest bid
Name
ELB Smart N6 Comfort Surface Grinding Machine
Item number
881939
Manufacturer
ELB
Model / Type
Smart N6 Comfort
Year of manufacture
2009
Item available from
immediately
Item condition
Location
Germany, 89150 Laichingen
Buyer’s premium
18 %
Dismantling & loading costs (binding)
600.00 €
Total Price
plus VAT
Shipping costs
not included
Delivery terms
FCA Laichingen, loaded on truck
Payment terms
100% payment prior to collection
weight approx.
3,800 kg
Approx. Onsite Dimension. (l x w x h)
2,800 x 2,400 x 2,200 mm
Machine number: 51194

Control: ELB

Grinding range:
  • Travel:
    • X-axis: 600 mm
    • Z-axis: 400 mm
    • Y-axis: 475 mm
  • Longitudinal axis X:
    • Table speed: 2 - 30 m/min
    • Longitudinal stroke: max. 800 mm
  • Vertical axis Y:
    • Vertical stroke: 475 mm
    • Feed speed: 1200 mm/min
    • Infeed: min. 0.001 mm
  • Transverse axis Z:
    • Transverse stroke: max. 370 mm
    • Feed speed: 2000 mm/min
    • Infeed: min. 0.001 mm

Clamping surface:
  • Table load without magnetic plate: 400 kg
  • Magnet dimensions: 610 x 410 mm
Spindle:
  • Grinding spindle: Cone: 63 mm
  • Grinding spindle drive: 4.3/5.7 kW
  • Speed range: 1440/2900 rpm
  • Grinding wheel dimensions: 300 x 50 x 76.2 mm

Motor:
  • Operating voltage: 3 x 400 V
  • Frequency: 50 Hz
  • Total connection: 12 kW
  • Rated current: 25 A
Automatic translation
Auction name
Closure of a Toolmaker
lot no.
50
Documents
Spec. Auction Terms
Inspection
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd
Germany

- address on request -
Viewing by prior appointment only!
Pick up
Wednesday, 07/02/2024 to
Friday, 09/02/2024, from 08:00 to 16:00

Monday, 12/02/2024 to
Thursday, 15/02/2024, from 08:00 to 16:00
