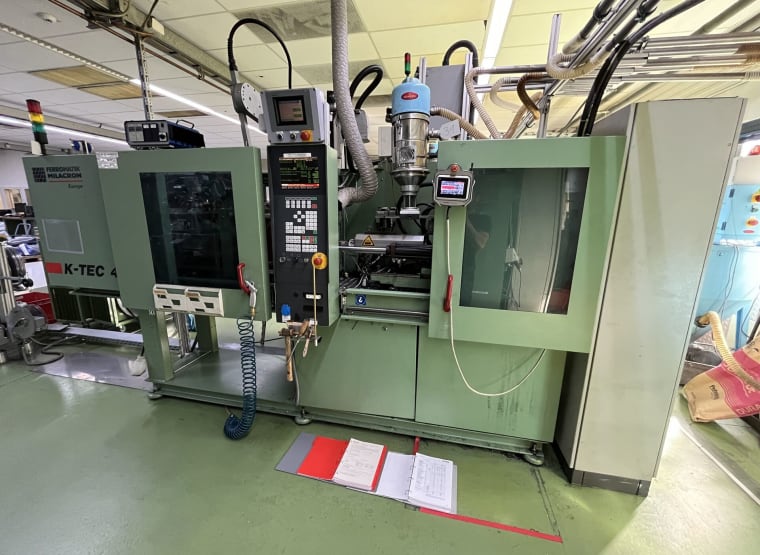

FERROMATIK MILACRON K-TEC 40 S Injection molding machine
Tip
lot no. 123
990 €
9 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
01/02/24 12:02
Closing time
990 €
Starting bid
Item details
- Name
- FERROMATIK MILACRON K-TEC 40 S Injection molding machine
- Item number
- 859843
- Manufacturer
- FERROMATIK MILACRON
- Model / Type
- K-TEC 40 S
- Year of manufacture
- 2004
- Item available from
- immediately
- Item condition
- Location
-
Germany, 73235 Weilheim Teck
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 300.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Weilheim Teck, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 4,000 x 1,500 x 2,700 mm
- weight approx.
- 3,000 kg
Item description
- Machine number: 510362
- Operating voltage: 400 V
- Frequency: 50 Hz
- Connection: 11 kW
- Clamping force: 400 kN
- Injection pressure: 2254 bar
- Stroke volume: 49 cm³
- Screw diameter: 25 mm
- Screw stroke: 100 mm
- Injection part weight: max. 42 g
- Injection flow: 68 cm³/s
- Screw length: 20 L/D
- Screw speed: 450 rpm
- Clamping force: 400 kN
- Opening force: 27.6 kN
- Mold opening stroke: 350 mm
- Mold installation height: 200 mm
- Platen distance: 550 mm max
- Clear column distance: 320 x 320 mm
- Clamping platens: max. 490 x 490 mm
- Ejector force: 34.4 kN
- Ejector stroke: 120 mm
- Incl. handling robot of the manufacturer WEMO
- Attention: without the granule sucker of the manufacturer MORETTO which can be seen on the machine.
- Operating voltage: 400 V
- Frequency: 50 Hz
- Connection: 11 kW
- Clamping force: 400 kN
- Injection pressure: 2254 bar
- Stroke volume: 49 cm³
- Screw diameter: 25 mm
- Screw stroke: 100 mm
- Injection part weight: max. 42 g
- Injection flow: 68 cm³/s
- Screw length: 20 L/D
- Screw speed: 450 rpm
- Clamping force: 400 kN
- Opening force: 27.6 kN
- Mold opening stroke: 350 mm
- Mold installation height: 200 mm
- Platen distance: 550 mm max
- Clear column distance: 320 x 320 mm
- Clamping platens: max. 490 x 490 mm
- Ejector force: 34.4 kN
- Ejector stroke: 120 mm
- Incl. handling robot of the manufacturer WEMO
- Attention: without the granule sucker of the manufacturer MORETTO which can be seen on the machine.
Automatic translation
Auction details
- lot no.
- 123
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
73235 Weilheim Teck / 73529 Schwäbisch Gmünd, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Monday, 12/02/2024 to
Friday, 16/02/2024, from 08:00 to 16:00
Monday, 19/02/2024 to
Wednesday, 21/02/2024, from 08:00 to 16:00
