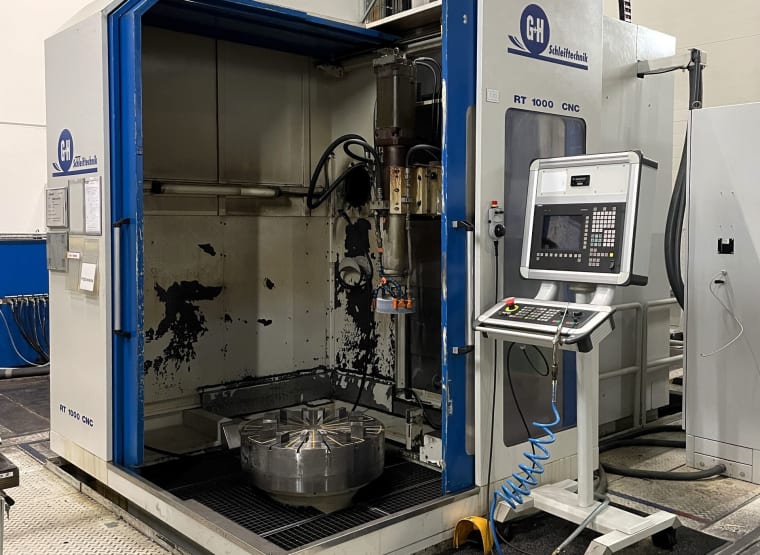

GEIBEL & HOTZ RT 1000 Precision Rotary Table Grinding Machine
Item details
- Name
- GEIBEL & HOTZ RT 1000 Precision Rotary Table Grinding Machine
- Item number
- 887788
- Manufacturer
- GEIBEL & HOTZ
- Model / Type
- RT 1000
- Documents
- Geibel_Hotz_technische_Daten.pdf
- Year of manufacture
- 2009
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 01665 Klipphausen
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Klipphausen, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- grinding depth
- 500 mm
- grinding spindle speed
- 3,150 rpm
- control
- SIEMENS
- adjustment of grinding carriage
- 600 mm
- table speeds
- 0-50 m/min
- total power requirement
- 50 kW
- weight approx.
- 22,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 6,730 x 6,000 x 4,600 mm
Item description
High-quality Precision Rotary Table Grinding Machine with a grinding range of 800 mm and a table load of up to 1000 kg.
Control system and Machine number
Grinding medium data
Please take a look at the technical data and the layout plans in the PDF file.
Control system and Machine number
- Control system: SIEMENS
- Machine number: 10 3419 0709
- Max. grinding area: Ø 800 x 500 mm
- Magnetic disc diameter: 800 mm
- Max. table load: 1000 kg
- Max. grinding spindle speed: 3150 rpm
- Table speed: 0 - 50 rpm
- Max. transverse movement: 600 mm
- Transverse and vertical speed: 5 - 4000 mm/min
Grinding medium data
- Standard cup grinding wheel (Øoutside x w x Øinside): 300 x 80 x 127 mm
- Standard grinding disc holder
- Grinding wheel bore: 127 mm
- Clamping width: 25 - 40 mm
- Flange diameter: 175 mm
Please take a look at the technical data and the layout plans in the PDF file.
