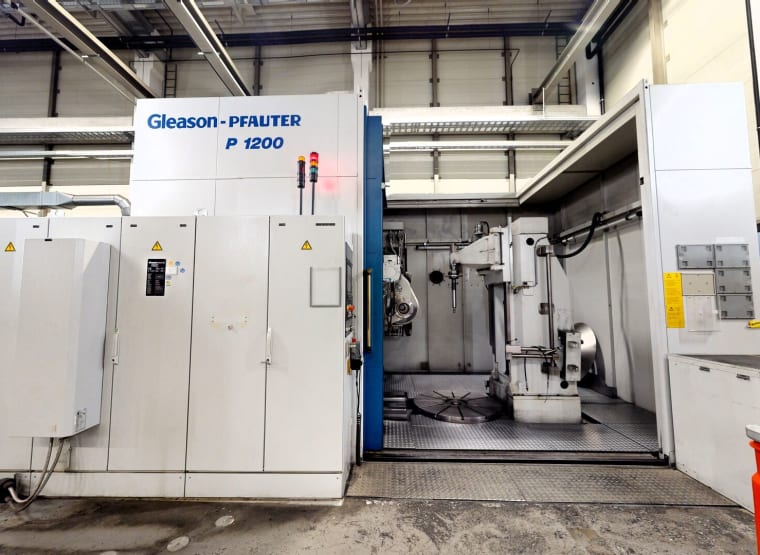

GLEASON-PFAUTER P 1200 Gear Hobbing Machine
Item details
- Name
- GLEASON-PFAUTER P 1200 Gear Hobbing Machine
- Item number
- 887760
- Manufacturer
- GLEASON-PFAUTER
- Model / Type
- P 1200
- Documents
- Technische_Daten_P1200_SN_30_062.pdf
- Year of manufacture
- 2008
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 01665 Klipphausen
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Klipphausen, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- Travel of counterholder
- 900 mm
- module min./max.
- max. 35
- control
- SIEMENS Sinumerik 840 D
- table diameter
- 1,200 mm
- milling head -swivable +/-
- + 30 / -45° °
- weight approx.
- 25,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 8,500 x 7,500 x 3,700 mm
Item description
Gleason-PFAUTER CNC Gear Hobbing Machine for gear cutting of cylindrical and worm gears up to 1.2 m in diameter.
Control system and Machine number
Working area
Control system and Machine number
- Control: SIEMENS Sinumeric 840 D
- Machine number: 30 062
Working area
- Workpiece nominal diameter: 1200 mm
- Axial slide path max.: 1000 mm (special version)
- Radial slide path: 800 mm
- Hob cutter length max.: 500 mm
- Hob cutter diameter max.: 450 mm
- Swivelling range: + 30 / -45°
- Cutter arbour taper: HSK-B160 (hollow shank taper according to DIN 69063)
- Max. milling cutter movement: 450 mm
- Nominal module hobbing approx.: 25 mm
- Nominal module for tooth form milling approx.: 35 mm
- Table diameter: 1200 mm
- Table bore: 300 mm
