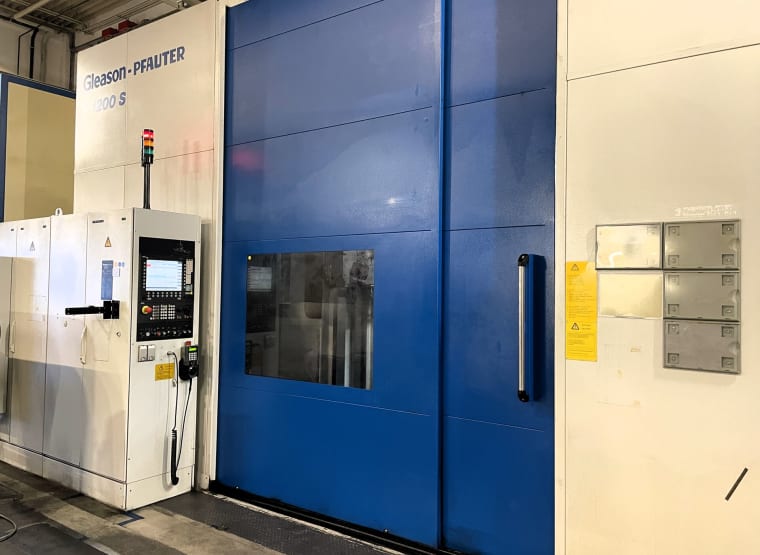

GLEASON-PFAUTER P 1200 S CNC Gear Shaping Machine
Item details
- Name
- GLEASON-PFAUTER P 1200 S CNC Gear Shaping Machine
- Item number
- 887698
- Manufacturer
- GLEASON-PFAUTER
- Model / Type
- P 1200 S
- Documents
- Technische_Daten_P1200S_SN_30_114.pdf
- Year of manufacture
- 2008
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 01665 Klipphausen
- Show on map
- All items at this location
- Virtual 3D Tour: View this item on site
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Klipphausen, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- max. wheel diameter
- max. 1400 mm
- module min./max.
- max. 16
- gear width
- 350 mm
- control
- SIEMENS Sinumerik 840 D
- table diameter
- 1,200 mm
- no. of strokes
- - 80 rpm
- weight approx.
- 25,000 kg
- Approx. Onsite Dimension. (l x w x h)
- 8,000 x 7,500 x 3,700 mm
Item description
The Gleason-PFAUTER CNC Gear Shaping Machine P 1200 S offers an extensive working range and impressive technical data. With a nominal workpiece diameter of 1,200 mm for external and internal gears and a maximum workpiece diameter of 1,400 mm without a counterholder, it is extremely versatile.
Control and Machine Number
Workpiece specifications
Shaping head specifications
Control and Machine Number
- Control: SIEMENS Sinumerik 840D
- Machine number: 30 114
- Table diameter: 1200 mm
- Table bore: Ø 300
Workpiece specifications
- Max. orbital diameter: 1400 mm
- Nominal workpiece diameter (external and internal toothing): 1200 mm
- Nominal module max.: 16 mm
- Toothing width max.: 350 mm
Shaping head specifications
- Max. stroke rate of shaping head: 80 min-1
