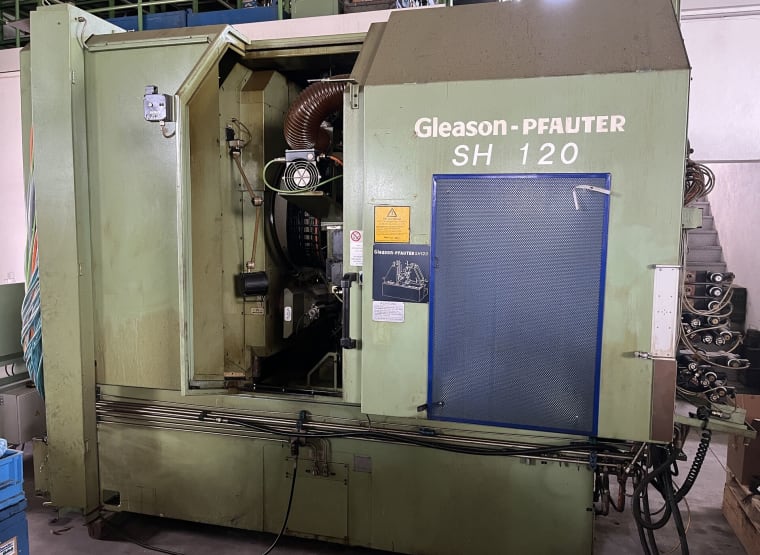

GLEASON-PFAUTER SH120 Hobbing Machine

Gleason Pfauter hobbing and shaping machine combined
Control Siemens 840C axes/spindles of the milling unit:
X Radial
Y tangential
Z = Axial A = Swivel S = Milling cutter C = Table
Cutter speeds: 125 - 1250
Table speeds: 0 - 1000
X-axis max. axis speed: 6000 mm/min
Y-axis max. axis speed: 5000 mm/min
Z-axis max. axis speed: 6000 mm/min
A-axis max. axis speed: 500 degrees/min
Axes/spindle of the slotting unit:
X Radial 10000MM/1' MAX.
Z Axial 3000MM/1' MAX.
C table. 1000 revolutions
B rotation knife 30 revolutions
S 500÷2500 BATT./1' A 500+2500 separation
W tilt 30° shock unit can be swiveled

Machine ist already dismantled!

Dimensions of the Gleason Pfauter: LxWxH in meters
Basic machine: 4 x2.3 x2.95
Control cabinet: 2.5 x 0.6 x 2.3
Gripper: 3.5 x 1 x 2.9
Suction: 1.2 x 1.3 x 2
Hydraulics: 1.3 x 1 x 1.4
Portal: 4 x 1.5 x 1.6
