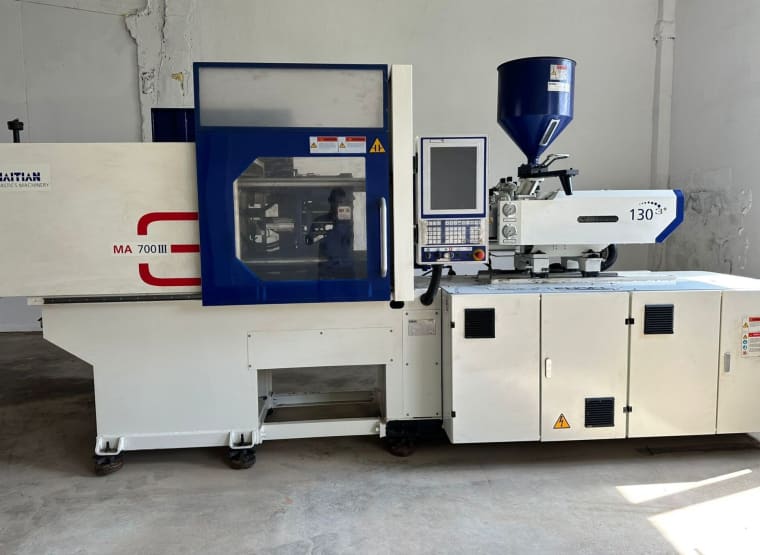

HAITIAN MA III 700-130 plus Plastic Injection Molding Machine
Top lot
lot no. 2
22,500 €
15 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
21/02/24 09:01
Closing time
22,500 €
Starting bid
Item details
- Name
- HAITIAN MA III 700-130 plus Plastic Injection Molding Machine
- Item number
- 851940
- Manufacturer
- HAITIAN
- Model / Type
- MA III 700-130 plus
- Documents
- 1-11 MA-3-plus-700-3500.pdf 1-12 Haitian MAIII 700-130 plus (1).pdf
- Year of manufacture
- 2022
- Item available from
- immediately
- Item condition
- Location
-
Romania, 420135 Bistrita
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 1,100.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Bistrita, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 4,300 x 1,320 x 2,100 mm
- weight approx.
- 3,300 kg
Item description
ATTENTION: machine is new, never worked
- serial number 20210700706384
- clamping unit: clamping force 700 kN
- opening force 57 kN
- distance between columns 360 x 360 mm
- opening stroke 310 mm
- maximum mold height 390 mm
- minimum mold height 150 mm
- thrower stroke 100 mm
- thrower force 33 kN
- minimum mold size 250 x 250 mm
- injection unit 130
- screw model diameter 28 mm B
- slug L/D ratio 23.3
- theoretical injection capacity 50 cm3
- effective injection capacity (PS) 45 g
- injection speed (PS) 62 g/s
- injection pressure 184 Mpa
- plasticizing capacity (PS) 6.0 g/s
- maximum screw rotation speed 0-285 rpm
- injection stroke 110 mm
- stroke 210 mm
- nozzle pressing force 24.7 kN
- controller: KEBA Mod. 2985
- PLC control panel with 15" touchscreen
- internal memory 100 molds
- 3 USB connections (RS232 - RS485 - ETHERNET) Euromap 67 robot interface
- pump motor power 13 kW
- heating power 6.25 kW
- oil tank capacity 135 liters
- hopper capacity 25 kg
