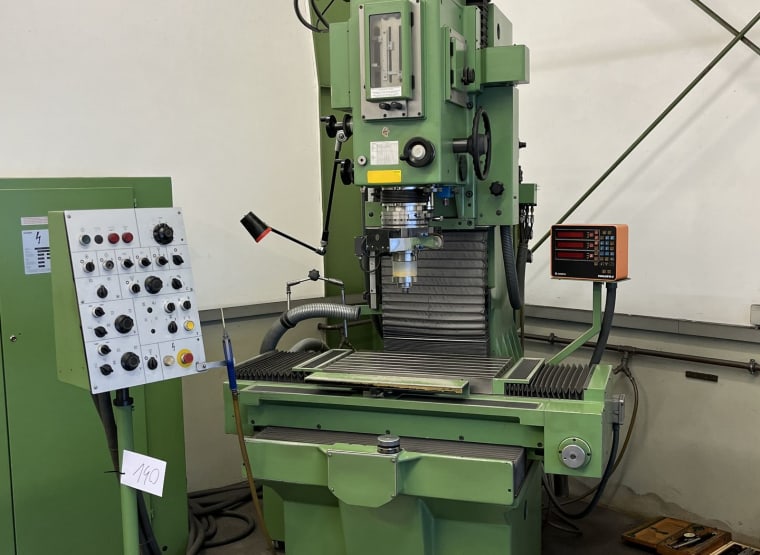

HAUSER S3-DR Coordinate Grinding Machine

Serial number: S30530

Working range:

• Adjustments X Y: 400 x 250 mm

Vertical adjustment of the sanding head (W): 450 mm
Stroke of the spindle sleeve (Z): infinitely adjustable up to 120 mm
With DC drive up to 100 mm
Clearance between sanding motor and table: 0 - 500 mm
Distance between spindle center and stand: 340 mm
Radial fine infeed (U): up to 6 mm
Grinding diameter with grinding wheel: 100 mm
And outrigger plate: max. 360 mm
Conical grinding included angle: max. 16°
Table dimensions: 600 x 380 mm
Permissible load of the table: max. 300 kg
Feed rates:

• Table and cross slide (XY) infinitely adjustable: 2 - 1500 mm/min
• Vertical adjustment of the sanding head (W): approx. 900 mm/min

Sanding spindle:

• Diameter of the spindle sleeve: 100 mm
• Spindle speed infinitely variable: 4500 - 80000 rpm

Turbines adjustable up to 100000 and 160000 rpm
Planetary speed (C) infinitely variable: 5 - 250 rpm
Speed of the alternating stroke movement (Z) continuously adjustable: 15 - 7500 mm/min
Fine feed in the Z-axis with DC drive continuously adjustable: approx. 0.5 - 150 mm/min

Incl. three-axis digital display from the manufacturer AXESTA as well as a workshop cabinet with contents matching the machine Consisting of various mounted points, abrasives, dividing head In addition, other specific accessories such as an optical microscope and other machine-specific accessories

Motor:

• Operating voltage: 3 x 380 V
• Frequency: 50 Hz
• Connection: 6.5 kW
