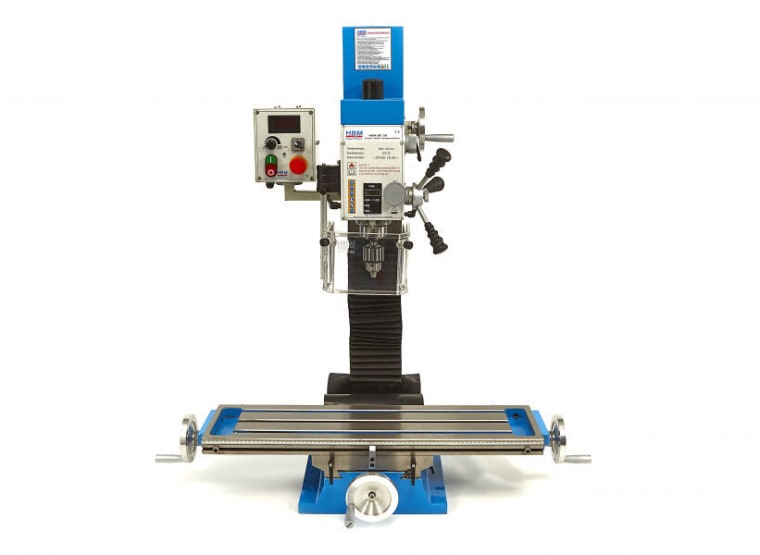

HBM BF 30 Drilling and milling machine

Drilling and milling machine with Powerful 2-speed motor. Recording MC 3 - B16. Drill chuck 3 - 16 mm. Left/right switch. Spindle protection. Fine tuning. ejection wedge. Clamp the threaded rod for the tool Related tools. Drilling capacity in steel 32 mm Projection 200 mm Drilling stroke 70 mm Capacity of the end mill 16 mm Spindle mount MK3 Spindle speeds 50 - 3000 rpm Table adjustment transversely 220 mm Table adjustment lengthwise 425 mm Table clamping surface 700 x 210 mm Connection voltage Vmax. Distance between work table and spindle nose 470 mm Total power requirement 1.5 kW Machine weight approx. 230 kg Space requirement approx. 0.75 x 1.05 x 1.2 m
