HÖFLER Rapid 1250 Profile Mould Grinding Machine
Item details
- Name
- HÖFLER Rapid 1250 Profile Mould Grinding Machine
- Item number
- 887781
- Manufacturer
- HÖFLER
- Model / Type
- Rapid 1250
- Documents
- Hofler_RAPID_1250_NO._1233_small.pdf
- Year of manufacture
- 2008
- Item available from
- immediately
- Item condition
- good, under power
- Location
-
Germany, 01665 Klipphausen
- Show on map
- All items at this location
Costs and benefits
- Shipping costs
- not included
- Delivery terms
- EXW Klipphausen, ex foundation, unpackaged
- Payment terms
- 100% payment prior to collection
Technical details
- workpiece diameter
- 1,250 mm
- control
- SIEMENS Sinumerik 840 D
- max. module
- 35 mm
- Approx. Onsite Dimension. (l x w x h)
- 7,200 x 8,200 x 3,300 mm
- grinding head swivellable +/-
- +120 / - 45 °
- weight approx.
- 28,000 kg
Item description

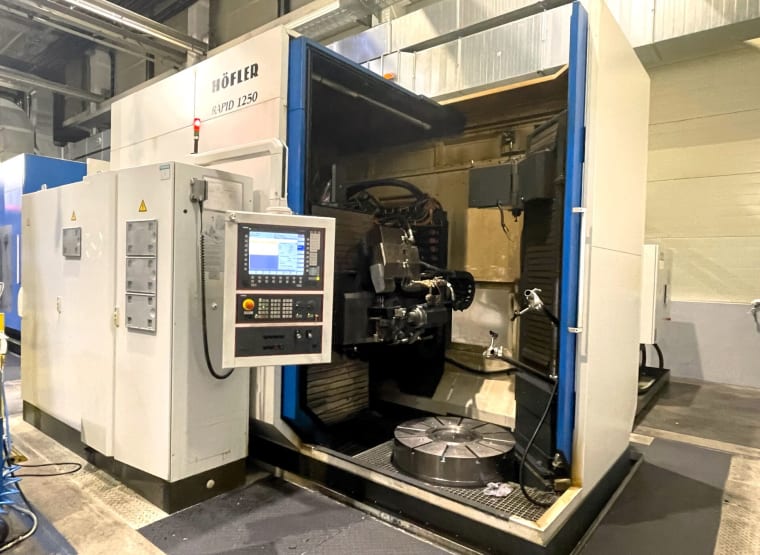

Well-maintained HÖFLER RAPID 1250 Cylindrical Gear Grinding Machine with integrated measuring device.
Control system and Machine number
Please take a look at the technical data and the layout plans in the PDF file.
Control system and Machine number
- Control: SIEMENS Sinumerik 840 D
- Machine number: 1233
- Head circle diameter (da) max.: 1250 mm
- Number of teeth: freely selectable
- Profile height max.: 80 mm
- Module approx.: 1 - 35 mm
- Workpiece height above workpiece table max.: 2250
- Grinding stroke: 1000 mm
- Grinding spindle drive: 24 kW
- Grinding wheel swivel angle: +120 -45°
- Max. grinding wheel diameter: 400
- Grinding disc diameter at the shoulder min.: 206
- Max. sanding disc width: 60 mm
- Spindle speed: 4000 rpm
- Travelling distance: 1240 mm
- Smallest distance to the table: 500 mm
- Table diameter: 930 mm
- Table load: 8000 kg
- HOFFMANN filter and cooling system
Please take a look at the technical data and the layout plans in the PDF file.
