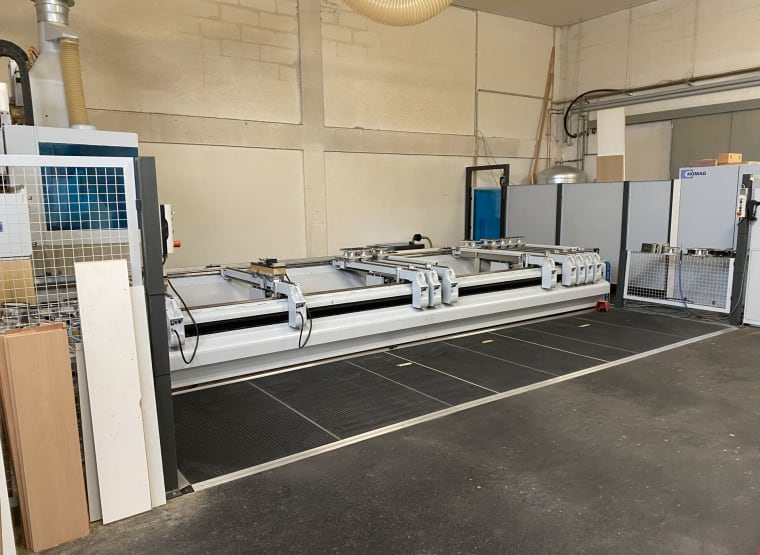

HOMAG BOF 311/60/F/KC 5-Axis CNC Machining Centre

HOMAG PROFI BOF311/60/F/KC 5 axis processing centre

• Fully automatic CONSOLES - CLAMPING TABLE KC
   - 10 clamping consoles with automatic positioning unit
   - 30 automatically positionable platforms for holding the vacuum clamps
   - 4 lifting rails attached to the side of the consoles

•  5 axis main spindle 15 kW liquid cooled.
    - Speed range continuously programmable from 1000 - 24000 rpm.

• Drive 5+ unit interface for the use of machining units.

• Drilling head 17 spindles vertical
 - 1 motor 2,7 kW, frequency controlled Speed max. 7500 1/min
 - 7 spindles vertical in X-direction
 - 11 spindles vertical in Y-direction
- 4 spindles horizontal drilling and sawing unit

•  Chain changer for 30 tool / unit positions with upstream double gripper for
   quick tool change

•  Pick-up place for saw blade 350 mm

•  Chip conveyor integrated in machine table

•  Laser projection
   for displaying the milling contour programmed in woodWOP or the position of the vacuum
   clamps defined in woodWOP

•  2 clamping devices for posts and scantlings
   mechanical/pneumatic clamping element with adjustable clamping jaws for
   clamping of stair posts or similar rectangular wooden scantlings

The tools shown in the tool changer and aggregates are not included in the scope of delivery

„A transport frame from HOMAG is required for transporting the dismantled machine, for which costs of EUR 6.500,00€ plus VAT will be charged.

After return of the transport rack to SURPLEX, the amount will be refunded minus a value reduction of 10 %.
