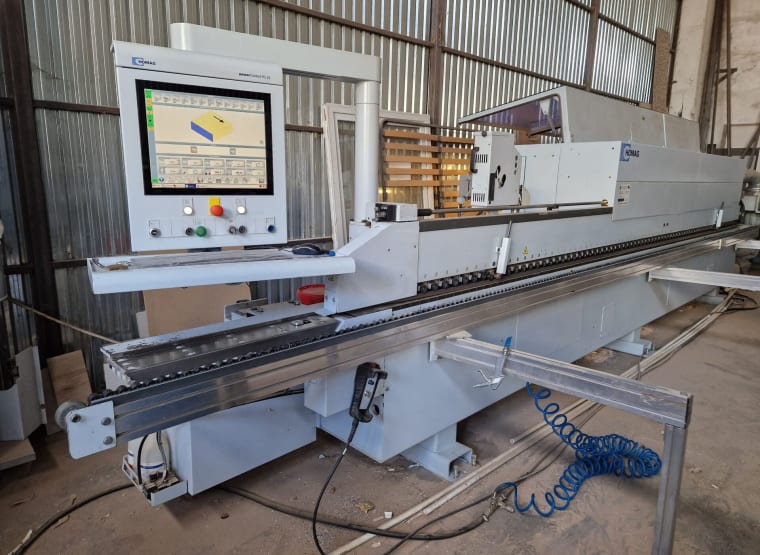

HOMAG KAL 210 AMBITION 2262 Edge Banding Machine
Top lot
lot no. 17
The auction is closed.
The auction is closed
Are you interested in this article?
Please don't hesitate to ask for a non-binding offer
Please don't hesitate to ask for a non-binding offer
Item details
- Name
- HOMAG KAL 210 AMBITION 2262 Edge Banding Machine
- Item number
- 875652
- Manufacturer
- HOMAG
- Model / Type
- KAL 210 AMBITION 2262
- Documents
- hom_ambition_2200_2274_2013.pdf
- Videos
-
Video 1 Video 2 Video 3 Video 4 - Year of manufacture
- 2015
- Item available from
- immediately
- Item condition
- in working order, under power
- Location
-
Romania, 077190 Voluntari
- Show on map
- All items at this location
Costs and benefits
- 1,200.00 €
- Shipping costs
- not included
- Delivery terms
- FCA Voluntari, loaded on truck
- Payment terms
- 100% payment prior to collection
- tax / deposit
Technical details
- serial number
- 0-200-01-2345
- control
- HOMAG POWER CONTROL PC 22
- Approx. Onsite Dimension. (l x w x h)
- 7,755 x 910 x 1,820 mm
- weight approx.
- 4,270 kg
Item description
- serial number 0-200-01-2345
- execution left-hand machine
- application of straight edges with variable speed between 18 and 25 m/min
- recommended for series production, the machine has most of the settings for changing the edge thickness, manual
- the machine has a complete set of aggregates
- chipboard pre-milling group: 0-5mm on any material thickness, height adjustable
- the unit can use both symmetrical and asymmetrical cutters
- panel preheating group with halogen lamp
- adhesive application unit (freshly serviced) with adhesive roll, 2 filling levels, and adhesive remelting unit
- press unit with driven roller and free rollers, all pneumatic with possibility of pressure adjustment
- aggregate to be cut at the ends HL81 with cutting at 90 or 35 degrees
- aggregate for roughing the surplus edge equipped with flat cutters
- milling aggregate FK13, with R2, mills both the lengths and the rounding at the ends. 0.4, 1 or 2 mm
- scraper R2 with quick-change heads, for scraping 2 mm edges
- flat scraping for adhesive leakage
- polishing brushes
- workpiece width min. 60 mm with workpiece thickness 12–22 mm (depending on workpiece length)
- workpiece width min. 105 mm with workpiece thickness 23–40 mm (depending on workpiece length)
- workpiece thickness min. 12–40 mm (opt. 8–60 mm)
- working height 950 mm
- edge thickness rolls 0.3-3 mm
- edge thickness strips 0.4-6 mm
- workpiece projection fixed 30 mm
- solid edge cross section 390 [mm²]
- edge cross section rolls 135 [mm²]
- feed adjustable 18-25 m/min
- connection value 28 kW
- total suction capacity approx. 3370 m³/h
- pressure loss approx. 2500 Pa
- pneumatics 6-7 bar
- machine control HOMAG POWER CONTROL PC 22
- dimensions close 7755 x 910 x 1820 mm (open 7755 x 1540 x 2250 mm)
