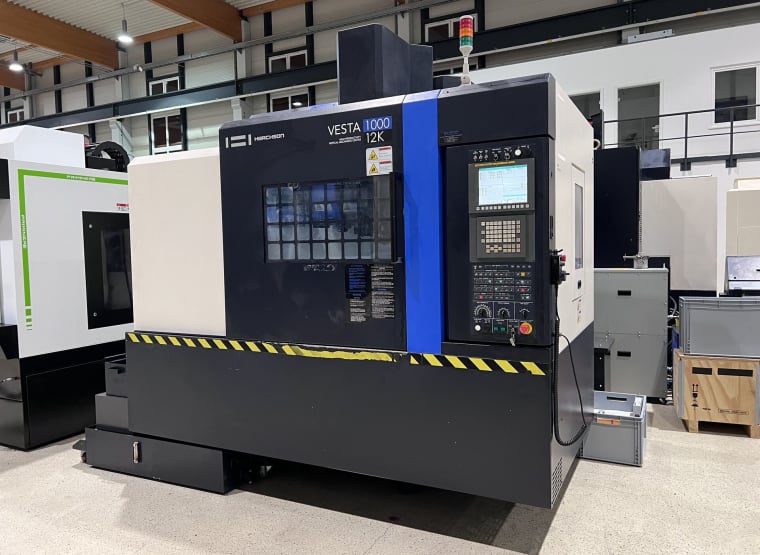

HWACHEON VESTA 1000 3-Axis machining centre
Top lot
lot no. 1
16,500 €
6 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
07/02/24 10:00
Closing time
16,500 €
Starting bid
Item details
- Name
- HWACHEON VESTA 1000 3-Axis machining centre
- Item number
- 889750
- Manufacturer
- HWACHEON
- Model / Type
- VESTA 1000
- Documents
- Aufstellplan_aus_Doku.pdf Technische_Daten_aus_Doku.pdf
- Year of manufacture
- 2015
- Item available from
- immediately
- Item condition
- Location
-
Germany, 82140 Olching
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 950.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Olching, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 3,500 x 3,000 x 2,900 mm
- weight approx.
- 7,500 kg
Item description
Control: Fanuc 0i-M
Speed [rpm]: 12000
Movement X/Y/Z [mm]: 1000/550/500
Tool holder: BT40
Spindle:
Technology: Inline-Direct spindle
Speed: 12.000 rpm
Power: 18,5 kW
Torque: 117 Nm
Taper: BT40
Workingtable:
Clampingsurface: 1.100 x 500 mm
Tableloading (max.): 700 kg
In general:
Toolmagazine: 24 stations
Rapid travers in X/Y/Z: 36/36/30 m/min
Equipment/Accessory:
Chipmanagement: Chip conveyor
Coolingmanagement: Internal cooling unit with high-pressure, 30 bar
Workpiecemeasurement: Touchprobe, m&h IRP 40.01
Setup operations: Electronic handwheel
Further Equipment: Spindle chiller, compressed air dryer, Trafo
Speed [rpm]: 12000
Movement X/Y/Z [mm]: 1000/550/500
Tool holder: BT40
Spindle:
Technology: Inline-Direct spindle
Speed: 12.000 rpm
Power: 18,5 kW
Torque: 117 Nm
Taper: BT40
Workingtable:
Clampingsurface: 1.100 x 500 mm
Tableloading (max.): 700 kg
In general:
Toolmagazine: 24 stations
Rapid travers in X/Y/Z: 36/36/30 m/min
Equipment/Accessory:
Chipmanagement: Chip conveyor
Coolingmanagement: Internal cooling unit with high-pressure, 30 bar
Workpiecemeasurement: Touchprobe, m&h IRP 40.01
Setup operations: Electronic handwheel
Further Equipment: Spindle chiller, compressed air dryer, Trafo
