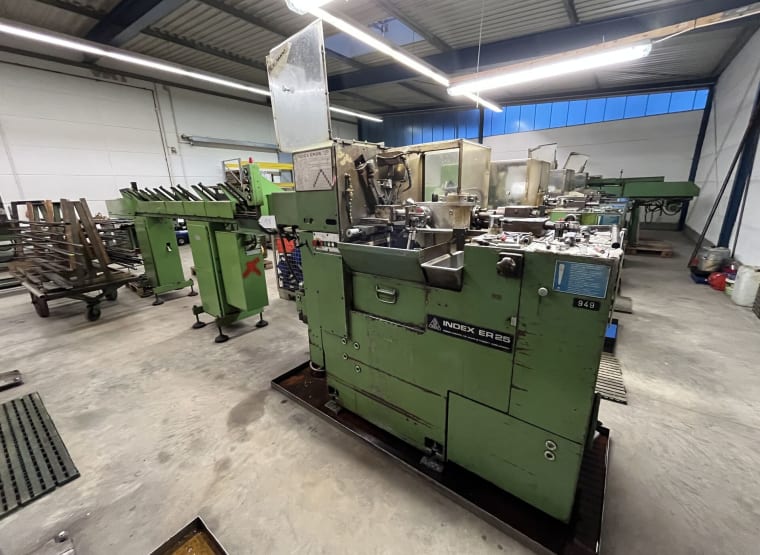

INDEX ER 25 Automatic Lathe

- Operating voltage: 380 V
- Frequency: 50 Hz
- Control voltage: 220 V
- Rated current: 13.4 A
- Clamping range: Largest material passage: Round: 25 mm
- Hexagonal: 22 mm
- Square: 18 mm
- Largest material feed per circuit: 70 mm
- Largest thread diameter for production with die and tap for brass and aluminum: M 16
- For free-cutting steel: M 14
- Work spindle: Speed range: 14 - 5750 rpm
- Automatically switchable speeds: 4
- Number of high-speed speeds: 26
- Number of low-speed speeds: 234
- Turret head diameter: 120 mm
- Turret working path: 60 mm
- Adjustment: 30 mm
- Distance between collet chuck and turret: 60 - 150 mm
- Infinitely variable feed speed
- Forward: 16 - 2800 mm/min
- Back: 40 - 7000 mm/min
- Rapid traverse speed:
- Forward: 10 m/min
- Back: 25 m/min
- Cross slide: Clamping surfaces for tool holders of type Index 12 - 25
- Working path: 44 mm
- Longitudinal adjustment of the top slide: 20 mm
- Infinitely variable feed speed
- Feed: 5 - 1000 mm/min
- Incl. bar loader from the manufacturer IEMCA
- Incl. the corresponding accessories on the machine
- Incl. suitable documentation such as operating instructions and electrical circuit diagram available
