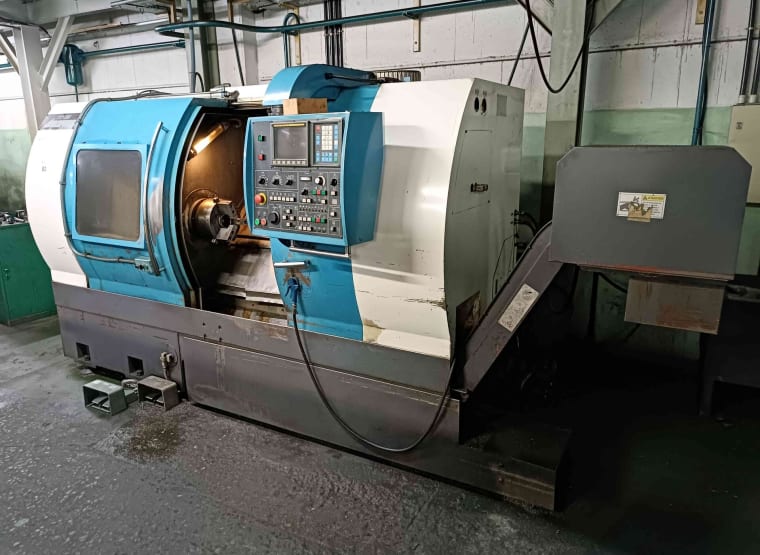

CNC Lathe
Serial number TB0402
Swing over bed 528 mm
Swing over cross slide 370 mm
Distance between centers 785 mm
Travels: X-axis: 290 mm (VDI 285 mm), Z-axis: 650 mm
Speed range 30 - 3500 Rpm
Rapid feeds: (X) 15,000 mm/min, (Z) 18,000 mm/min
12-position turret
3-jaw chuck Ø 275 mm
Pneumatically operated door
FANUC O-T Series Control
Chip extractor and tool holder with mounted tool included
Important note: Memory card defective!
