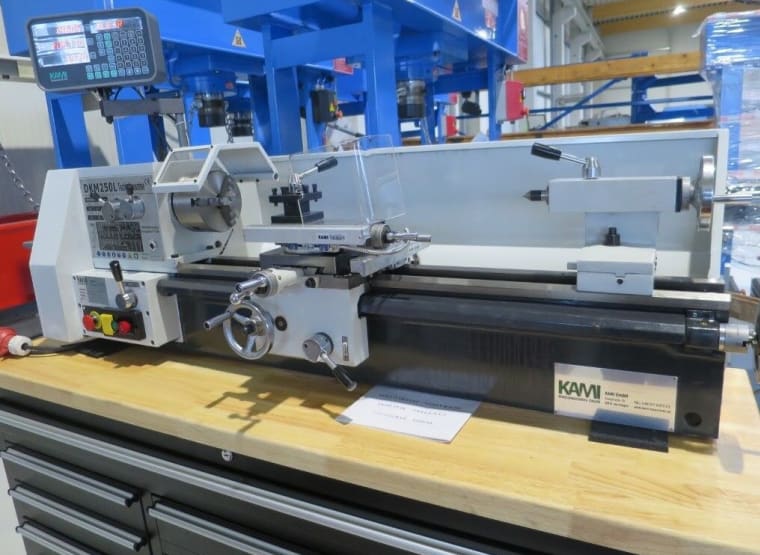

KAMI DKM 250L-1 Table lathe

Table lathe with: - 2-axis digital measuring system with position display - manufactured according to DIN 8606 - 27 mm spindle passage - adjustable guideways "through adjustable strips" - Strong motor with 0.75 kW - High resolution of the axis spindles for exact positioning Scope of delivery: 3-jaw chuck 100 mm, replacement wheel set, splash guard, 3-axis digital measuring system fully assembled. Turning diameter over bed 250 mm Turning diameter over support 130 mm Turning length 700 mm Speed 115 - 1620 U / min Center height 125 mm Spindle bore 27 mm Tailstock sleeve mount MK 2 Tailstock quill stroke 40 mm Metric threads 0.2 - 3.5 mm Thread - inch 8 - 56 inch. Thread module 0.2 - 12.5 mm Swivel range +/- top slide 45 ° Total power requirement 0.75 kW Machine weight approx. 0.15 t Space requirements approx.1.41 x 0.61 x 0.41 m
