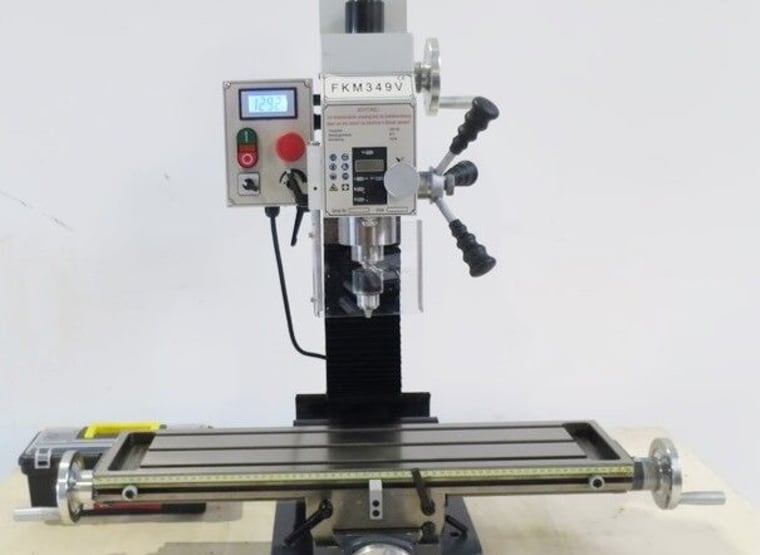

KAMI FKM 349 V Drilling/milling machine

Furnishing Two-stage transmission via flat belt!! (no more plastic gears) continuously adjustable speed range Quill fine feed via switchable handwheel Digital quill depth display Right-left rotation Robust dovetail guides with adjustable wedge strips Bellows covers for the guideways adjustable control panel Chip protection with safety circuit Machine base frame optional. Drilling capacity in steel 25 mm Projection 185 mm Drilling stroke 50 mm Spindle holder MK 3 Spindle speeds 50 - 2500 rpm Table adjustment transversely 178 mm Table adjustment lengthwise 480 mm Table clamping surface 700 x 180 mm Connection voltage 230 V Total power requirement 0.75 kW Machine weight approx. 160 Kg Space requirement approx. 0.75 x 0.8 x 0.9 m
