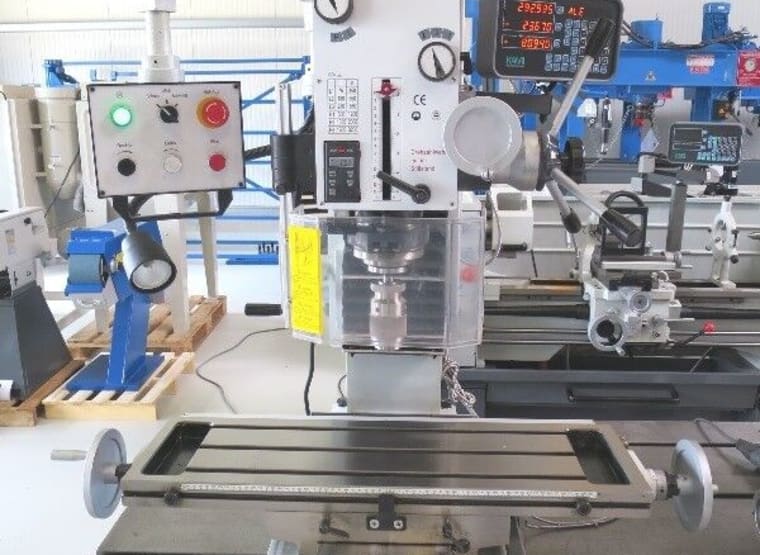

KAMI FKM 350 PD SK40-1 Drilling and milling machine

Drilling / milling machine with:
• Digital display
• Digital depth gauge for quill
• Adjustable guides through wedge strips
• Large 12-stage speed range from 75 - 3200 rpm
• Smooth running thanks to hardened and ground gears running in an oil bath
• Right-left rotation
• Prism guides in all axes
• Gear head can be swiveled 90 °
• Chip protection with safety circuit

Optional machine base. Not included in the delivery.


Drilling capacity in steel 40 mm
Projection 290 mm
Drilling stroke 130 mm
SK 40 spindle holder
Spindle speeds 75 - 3200 rpm
Table adjustment across 500 mm
Table adjustment along 230 mm
Table surface area 720 x 210 mm
400 V supply voltage
Milling cutter diameter max. 80 mm
Total power requirement 1.1 kW
Machine weight approx. 0.35 t
Space requirements approx.1.1 x 0.9 x 1.2 m
