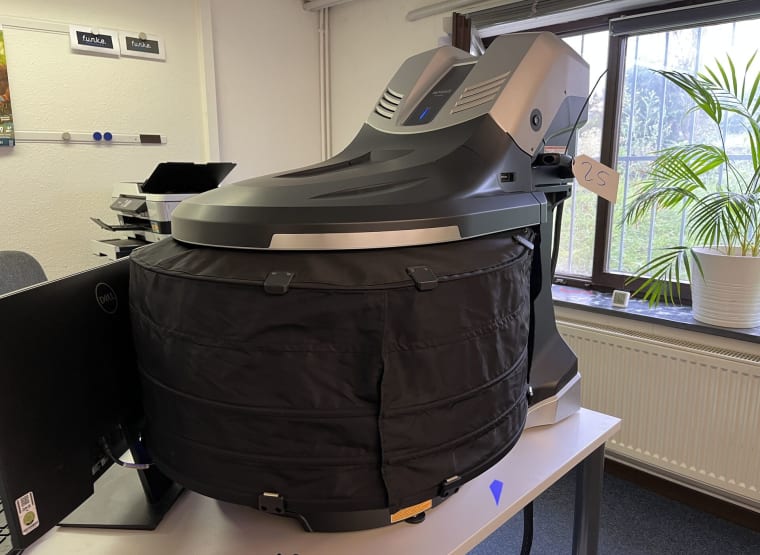

KEYENCE VL-500 Optical 3D Coordinate Measuring Machine
Top lot
lot no. 25
6,100 €
3 Bids 39 watchers
Log in to bid
€
Use bidding agent
+ auction fee & VAT
25/01/24 10:24
Closing time
6,100 €
Current highest bid
Item details
- Name
- KEYENCE VL-500 Optical 3D Coordinate Measuring Machine
- Item number
- 882396
- Manufacturer
- KEYENCE
- Model / Type
- VL-500
- Videos
-
Video 1 - Year of manufacture
- ~ 2020
- Item available from
- immediately
- Item condition
- Location
-
Germany, 79331 Teningen
- Show on map
- All items at this location
Costs and benefits
- 18 %
- 100.00 €
- Total Price
- plus VAT
- Shipping costs
- not included
- Delivery terms
- FCA Teningen, loaded on truck
- Payment terms
- 100% payment prior to collection
Technical details
- Approx. Onsite Dimension. (l x w x h)
- 1,000 x 700 x 900 mm
- weight approx.
- 40 kg
Item description
- Serial number: #8C120117/#8C120045
- Frequency: 50/60 Hz
- Connection: 80 VA
- Type control unit: VL-500
- Nasis type: VL550
- Measuring head type: VL-570
- Lighting system:
- Light source for viewing: 3 colored LED (red, green, blue)
- Light source for measurement: LED blue
- Display resolution: 0.1 µm
- Repeatability: 2 µm
- Measuring accuracy: +/- 10 µm
- Measurement resolution:
- Standard measurement 4 m mode: 4 million. Points
- Fine measurement (16 m mode): 16 million. Points
- Image composition:
- Low magnification 2 x 2 composition: 500 x 200 mm
- Low magnification: 580 x 300 x 200 mm
- High magnification 2 x 2 composition: 110 x 50 mm
- High magnification (3 x 1 composition): 150 x 110 x 50 mm
- Object table configuration X Y0 object table with electric drive
- Stage rotation: 380°
- Unlimited rotation
- Stage movement range: 200 mm
- Tilt mechanism: up to 45°
- Max. weight load: 50 kg
- Calibration year: 2021
Including various documentation as well as a calibration disk and CDs.
Automatic translation
Auction details
- lot no.
- 25
- Documents
- Spec. Auction Terms
- Inspection
-
The exact location is available on request.
79331 Teningen, Germany
- address on request -
Viewing by prior appointment only!
- Pick up
-
Tuesday, 06/02/2024 to
Thursday, 08/02/2024, from 08:00 to 16:00
